Série S74 OC & N° 22244 • Caujolle
How to choose your roulette?

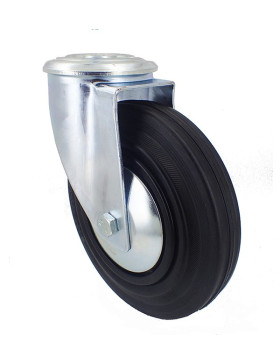

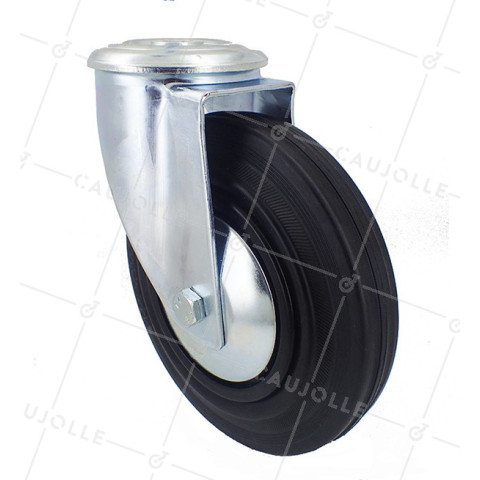

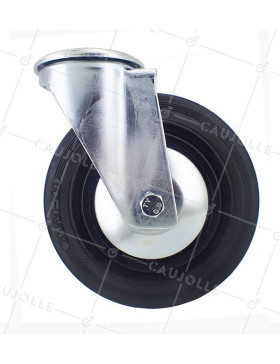

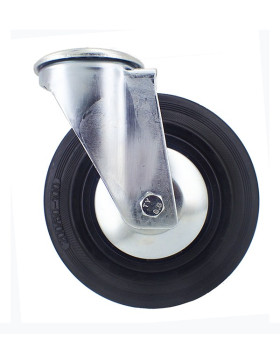

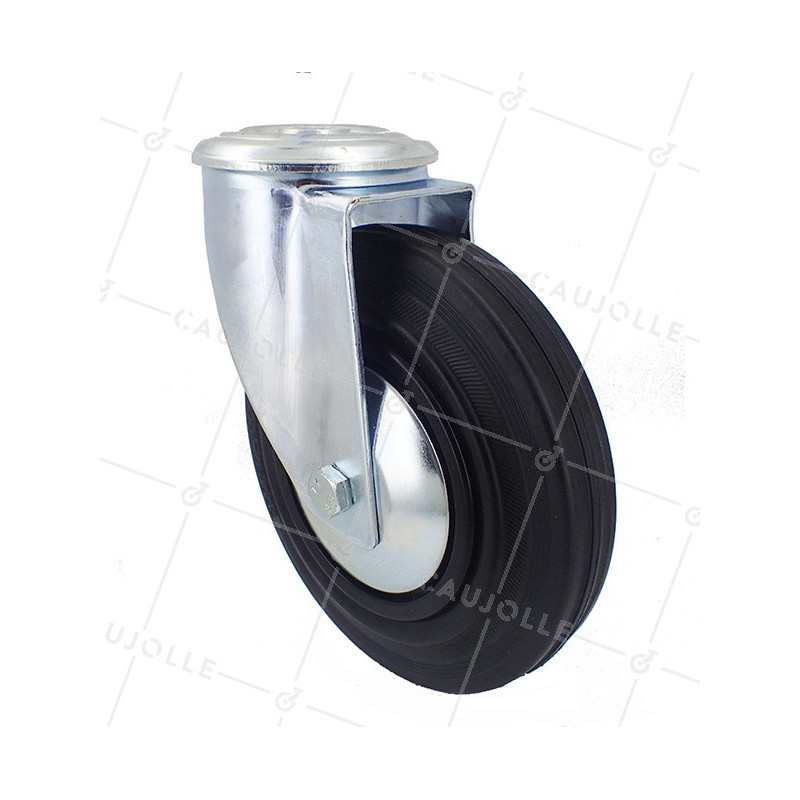

Série S74 OC & N° 22244

REF: 22244

MONTURE:

- Tôle d’acier emboutie zinguée chromatée.
- Pivotement sur deux couronnes de billes.

- Axe boulonné.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 200

  • Material of the tread Rubber

  • Type of bearing Roller bearing

  • Type fixation A bolt hole (central hole)

  • Height of the roulette in mm 239

  • Bore in mm 20

  • Diameter of fixation in mm M16

  • Wheel width in mm 45

  • Hub length in mm 60

  • Width of the bearing band in mm 29

  • Offset in mm 55

  • Dimensions in mm 155

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Diameter of the dome 103

  • Weight 2.806 Kg
