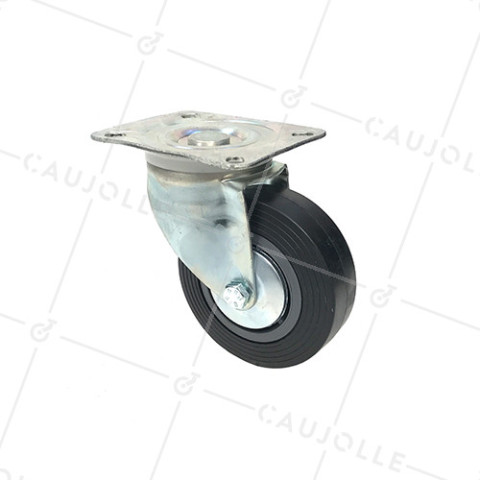

WIDE SWIVEL CASTOR FOR GOODS HANDLING DIAMETER 125 MM MAX LOAD 125 KG - S2C 125R

REF: 22585

This goods handling castor is composed of a swivel mounting with a galvanised pressed steel plate and a reinforced wheel in rubber with a diameter of 125 mm.

The black rubber wheel is fitted with threadguards. The plate swivels on two ball-bearing crowns equipped with a waterproof cover.

The wheel being wider than the average (35mm instead of 25 mm) enables it to be used on floors that are more irregular as the load is more evenly spread.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 125

  • Load capacity in kilograms 125

  • Material of the tread Rubber

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 155

  • Dimension plate in mm 128x102

  • Distance between axes in mm 94x68

  • Diameter of fixation in mm M10

  • Wheel width in mm 39

  • Width of the bearing band in mm 34

  • Offset in mm 48

  • Dimensions in mm 110.5

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 1.528 Kg
