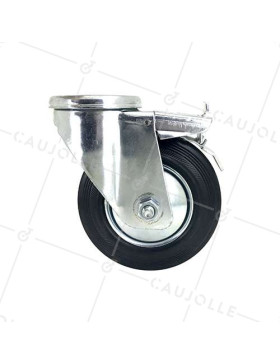

  • Handling wheel with eye and rubber brake diameter 125 mm

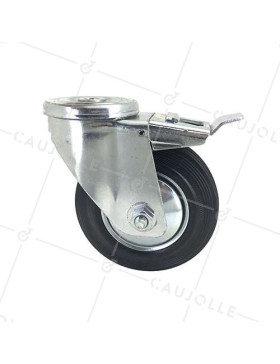

  • Handling wheel with eye and rubber brake diameter 125 mm

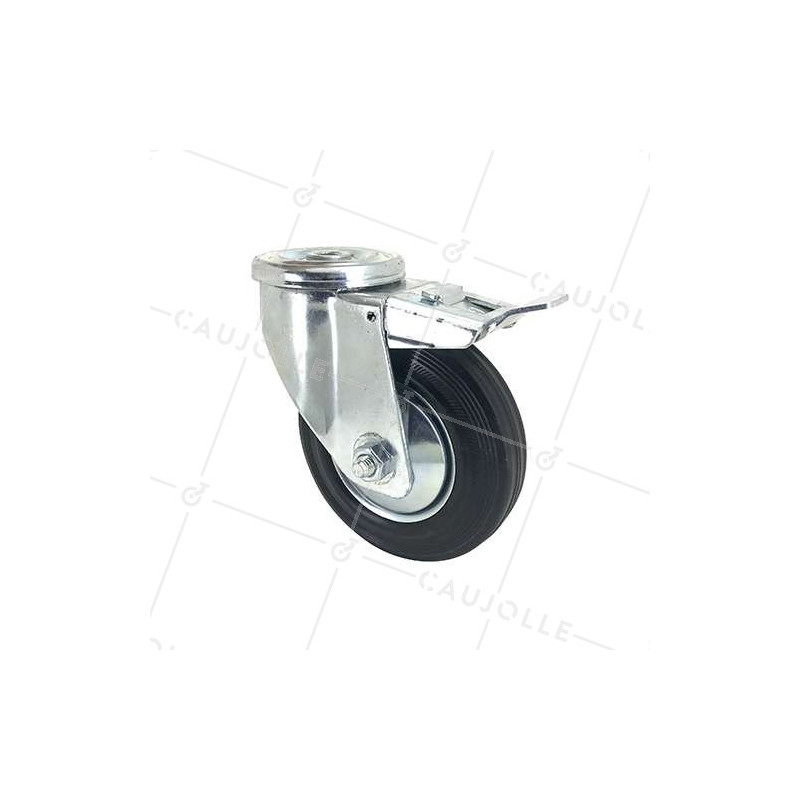

  • Handling wheel with eye and rubber brake diameter 125 mm
  • Handling wheel with eye and rubber brake diameter 125 mm
How to choose your roulette?

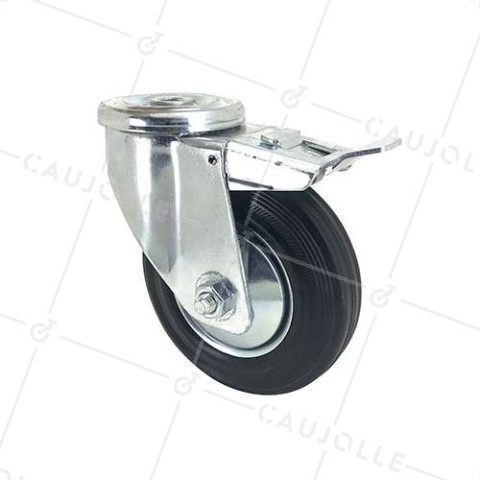

Castor CLASSIC HANDLING CASTOR WITH Bolt hole RUBBER BRAKE DIAMETER 125 MM LOAD 100 KG WITH 12 MM FIXING - S06C125LAF

REF: 22731

This eye caster and brake is useful for workshop trolleys, carts, or furniture like glass tables. Its steel mount has a eye fixation (central hole) of 12 mm. To attach it, nothing could be simpler: a bolt with a nut in your support!

The wheel is made of black rubber, 125 mm, and can withstand a total load of 100 kg per caster.

Regarding the lifespan of such a product, it is very high for typical use on smooth floors, provided the indicated load is respected.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 125

  • Load capacity in kilograms 100

  • Material of the tread Rubber

  • Type of bearing Plain bore hub

  • Type fixation A bolt hole (central hole)

  • Height of the roulette in mm 152

  • Diameter of fixation in mm M12

  • Wheel width in mm 35

  • Brake With brake

  • Width of the bearing band in mm 22

  • Offset in mm 42

  • Dimensions in mm 151.5

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Diameter of the dome 77

  • Weight 0.990 Kg
