ROULETTE PIVOTANTE PNEUMATIQUE GONFLABLE JANTE TÔLE DIAMÈTRE 260 MM CHARGE 165 KG - S20-1 TOLE GONFLÉE • Caujolle
  • ROULETTE PIVOTANTE PNEUMATIQUE GONFLABLE JANTE TÔLE DIAMÈTRE 260 MM CHARGE 165 KG - S20-1 TOLE GONFLÉE
  • ROULETTE PIVOTANTE PNEUMATIQUE GONFLABLE JANTE TÔLE DIAMÈTRE 260 MM CHARGE 165 KG - S20-1 TOLE GONFLÉE
  • ROULETTE PIVOTANTE PNEUMATIQUE GONFLABLE JANTE TÔLE DIAMÈTRE 260 MM CHARGE 165 KG - S20-1 TOLE GONFLÉE

ROULETTE PIVOTANTE PNEUMATIQUE GONFLABLE JANTE TÔLE DIAMÈTRE 260 MM CHARGE 165 KG - S20-1 TOLE GONFLÉE

REF: 80035

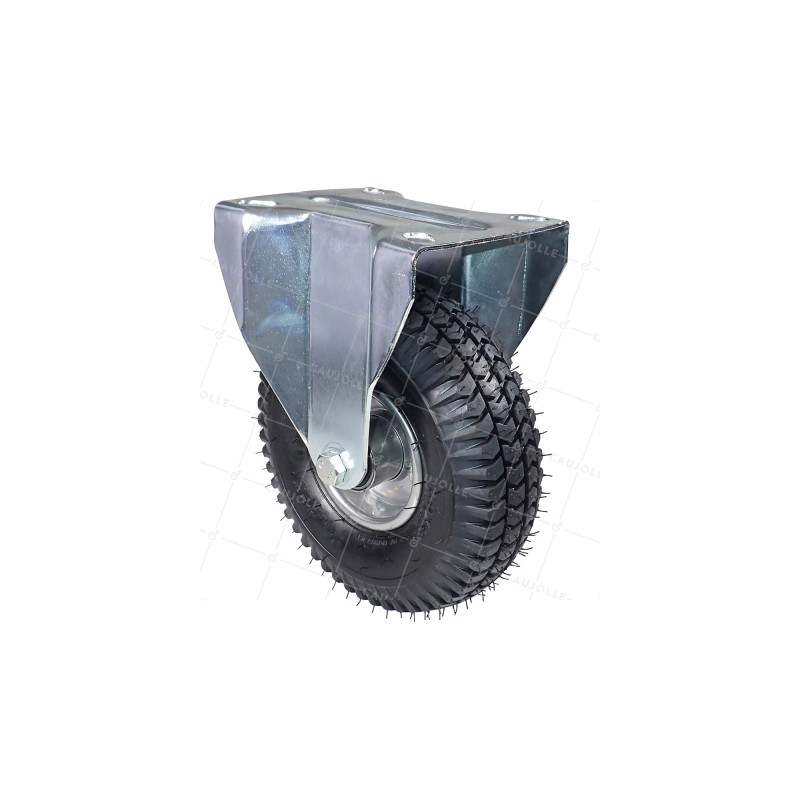

Castor fixed with a wheel pneumatic 4-ply reinforcement 3.00-4 with a diameter of 260 mm.

The premium wheel allows for quiet and smooth movement on all types of surfaces (gravel, dirt, lawn, grass, sand…) thanks to its deep treads which provide better grip and reduced vibrations.

The bolted steel rim equipped with a double bearing with sealed balls of 20 mm reduces pushing effort.

This high-end castor is particularly recommended for mounting on carts for professional use, supporting a unit load of up to 250 Kg.

You can place two fixed wheels at the front of the cart to easily guide the whole and 2 swivel wheels with or without brakes at the back.

Payment Secure

Technical sheet

  • Diameter of the wheel in mm 260

  • Load capacity in kilograms 250

  • Material of the tread Inflatable rubber

  • Type of bearing Bearing ball bearing

  • Type fixation Fixed to plate

  • Height of the roulette in mm 305

  • Specificities Heavy load

  • Bore in mm 20

  • Dimension plate in mm 200x160

  • Distance between axes in mm 150x115

  • Diameter of fixation in mm M14

  • Wheel width in mm 80

  • Width of the bearing band in mm 62

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -40/+80

  • Weight 3.956 Kg
