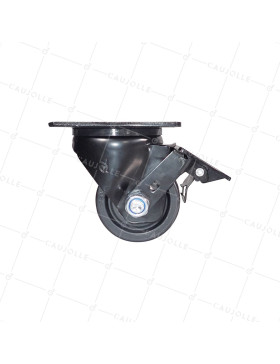

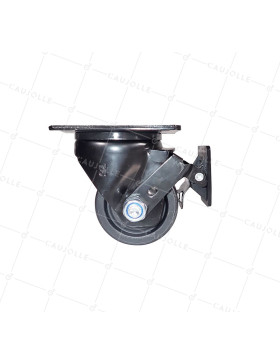

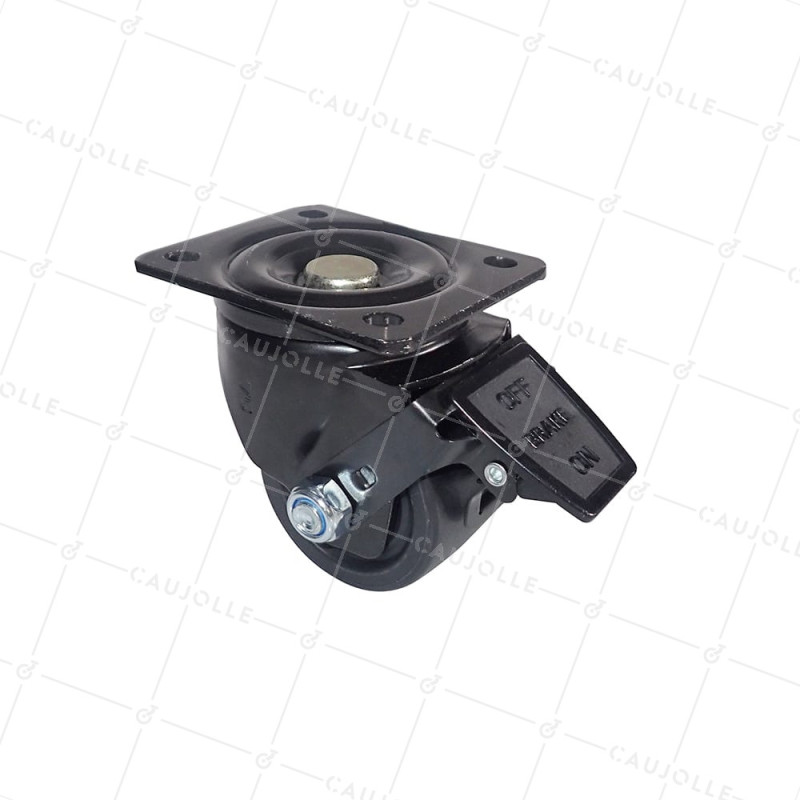

Castor EXTRA LOW SWIVEL NYLON FIBER HEAVY LOAD DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75PAF

REF: 99320

Castor particularly interesting in many areas:

- A very low height of 105 mm in total.

- A very low offset allowing it to be integrated into small spaces while enabling free pivoting. Indeed, if the overall footprint is still too large for you, you can remove the brake by unscrewing the wheel and thus have a very limited footprint of 57 mm around its axis of rotation.

- A very high permissible unit load, allowing more than 1800 kg on 4 castors (thanks to steel thicknesses of 4 mm for the plate and 3 mm for the fork).

- 2 internal ball bearings reducing the effort required during handling.

- A nylon coating filled with fiberglass for increased resistance to static loads over the long term.

Payment Secure

Technical sheet

  • Diameter of the wheel in mm 75

  • Load capacity in kilograms 400

  • Material of the tread Reinforced nylon with glass fibers

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 105

  • Specificities Heavy load

  • Dimension plate in mm 105x85

  • Distance between axes in mm 60x80

  • Diameter of fixation in mm M8

  • Wheel width in mm 50

  • Brake With brake

  • Style Industrial

  • Width of the bearing band in mm 50

  • Offset in mm 17.5

  • Dimensions in mm 97.5

  • Shore hardness 75 Sh D

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -30/+80

  • Weight 1.220 Kg
