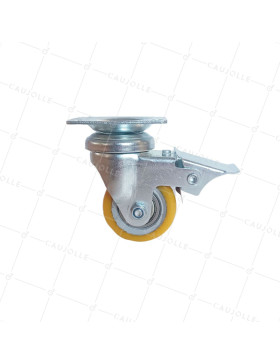

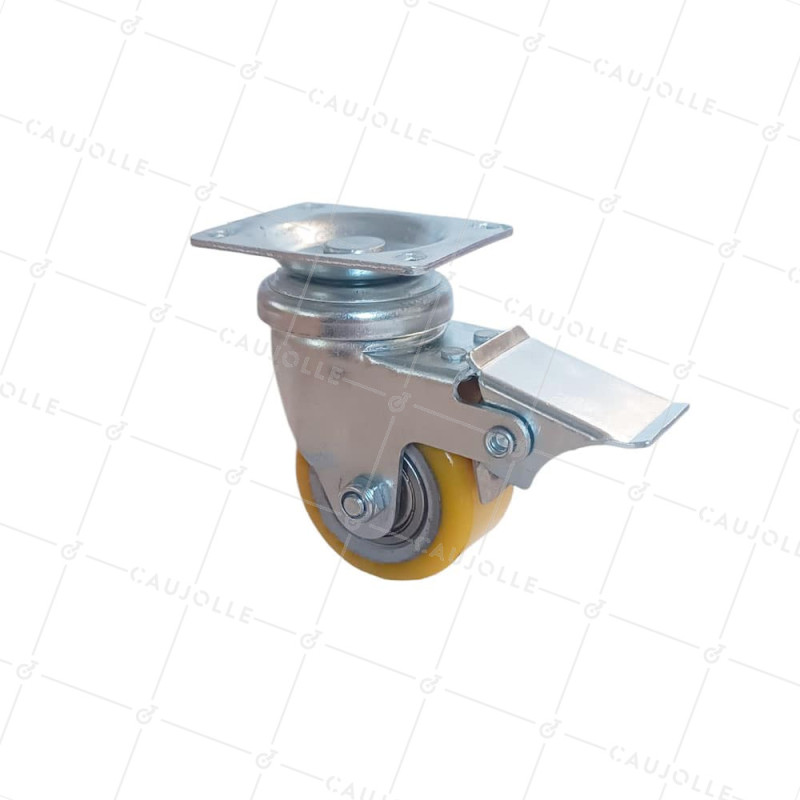

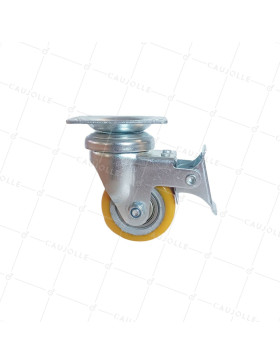

Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF • Caujolle
  • Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF
  • Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF
  • Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF
  • Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF
How to choose your roulette?

Castor SWIVEL WITH BRAKE IN POLYURETHANE ALUMINUM RIM DIAMETER 50 MM LOAD 180KG - S74AR 50 AF

REF: 25102

This model is particularly suitable for industries that require workbenches or workstations to be mobile without raising the whole unit too much. Polyurethane is very resistant to crushing over the long term (both static and dynamic), is gentle on floors, and operates quietly. This range is also suitable for placing under very heavy transport cases in the music industry or in the metalworking industry for heavy machines.

It is possible to load over 540 kilograms on 4 units (3x180) at a dynamic moving speed of 4 km/h.

The fully steel brake is very robust. The entire castor is galvanized to resist corrosion.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 50

  • Load capacity in kilograms 180

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 80

  • Specificities Heavy load
    Non-staining

  • Bore in mm 6

  • Dimension plate in mm 60x48

  • Distance between axes in mm 48x35

  • Diameter of fixation in mm M6

  • Wheel width in mm 27

  • Hub length in mm 27

  • Brake With brake

  • Width of the bearing band in mm 27

  • Offset in mm 14

  • Dimensions in mm 75

  • Shore hardness 92 Sh A

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+60

  • Weight 0.452 Kg
