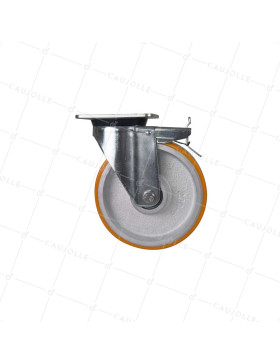

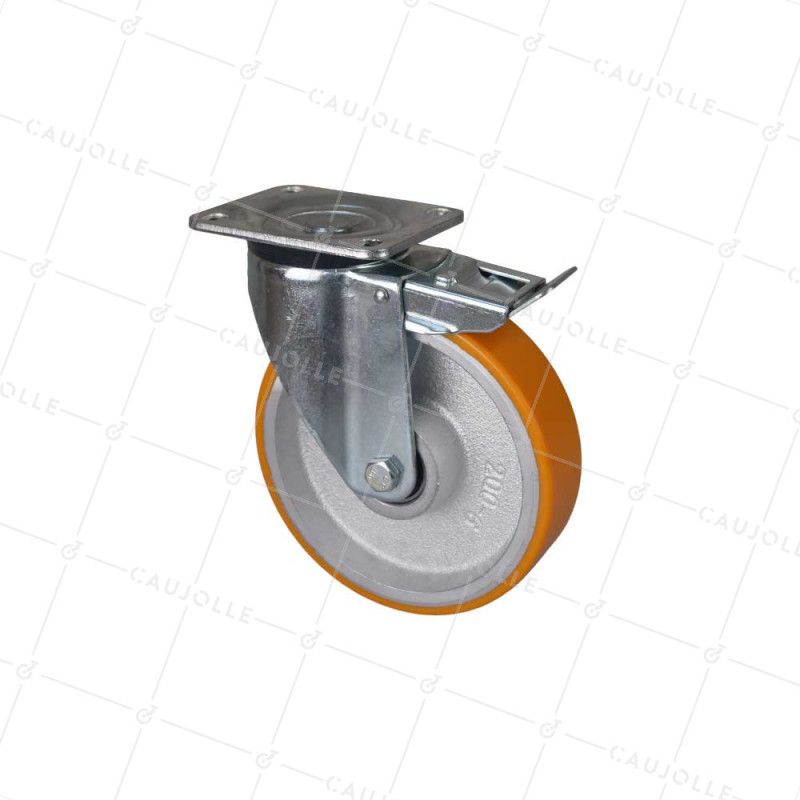

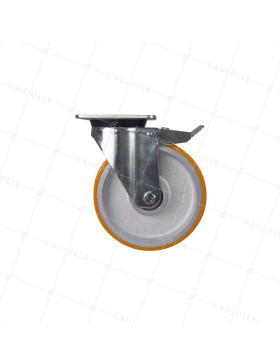

Castor SWIVEL WITH BRAKE Wheel CAST IRON AND POLYURETHANE DIAMETER 200 MM LOAD 1000 KG WITH FRONT BRAKE - S78 SFPU 200 FRONT BRAKE

REF: 26912

This model has been designed to meet specific requests:

  • A front brake to be able to operate the pedal while pushing the cart.

  • A polyurethane anti-crushing wheel, allowing it to support prolonged static loads for several months.

  • A cast iron rim, resistant to a very high load of 1 ton per unit.

  • A plasticized tempered nylon internal spacer anti-abrasion, to withstand wear from the internal bolt.

  • A double ball bearing to limit pushing efforts.

  • A double brake lock, allowing simultaneous locking of the rotation of the plate and the wheel.

In summary, this is a model designed for very intensive use.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 1000

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 245

  • Specificities Non-staining

  • Bore in mm 20

  • Dimension plate in mm 136x110

  • Distance between axes in mm 105x80

  • Diameter of fixation in mm M10

  • Wheel width in mm 50

  • Hub length in mm 60

  • Brake With brake

  • Maximum speed in km/h 4

  • Weight 6.350 Kg
