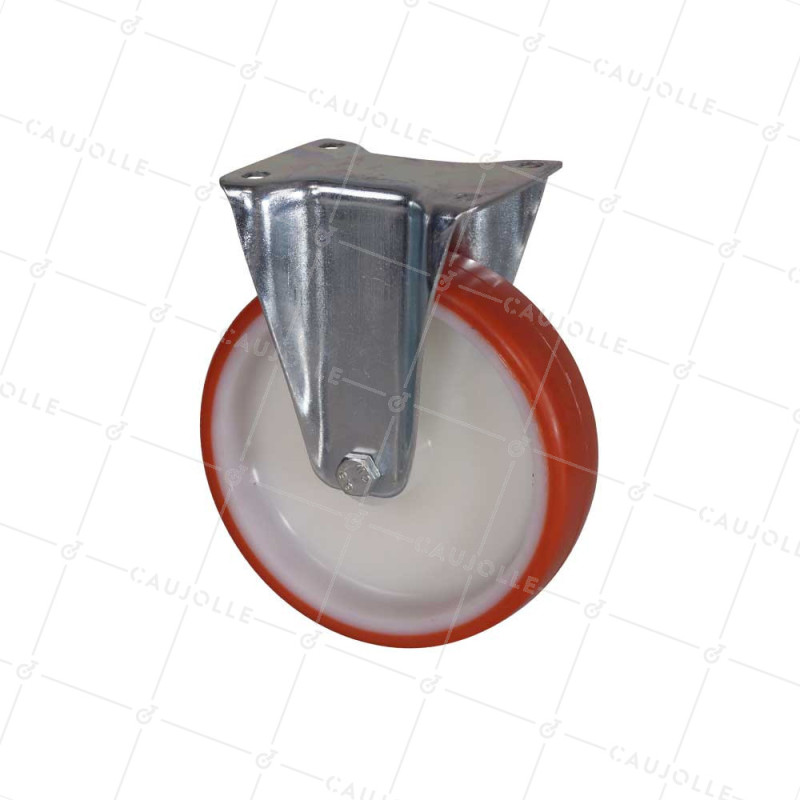

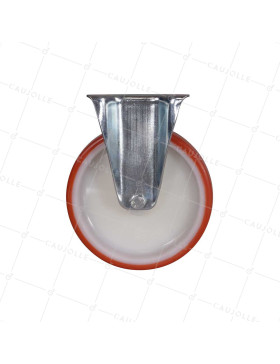

Castor FIXED HANDLING CASTOR IN NYLON/POLYURETHANE DIAMETER 200 MM LOAD 400 KG - S75NP 200

REF: 26145

Step up the game for moving your very heavy loads. With its large diameter of 200 mm, this fixed wheel is designed for the most demanding handling challenges in factories, warehouses, and workshops. It combines the brute strength of nylon with the flexibility of polyurethane to maximize the efficiency of your equipment.

  • Increased crossing and smoothness: Its large diameter of 200 mm allows for easier overcoming of small obstacles, expansion joints, and floor irregularities, while reducing pushing effort.

  • Silence and respect for surfaces: The high-performance red polyurethane tread effectively absorbs vibrations and ensures silent movement without leaving any marks on your floors.

  • Industrial robustness: Built to last, the combination of an ultra-strong nylon rim and a galvanized steel frame offers maximum resistance to shocks, abrasion, and corrosion.

Technical specifications

  • Product type: Fixed wheel with plate

  • Diameter of the roller: 200 mm

  • Material of the tread: Polyurethane (Color: Red)

  • Material of the rim: High-strength nylon

  • Material of the frame: Galvanized steel (Corrosion protection)

  • Type of movement: Linear / Fixed

  • Areas of use: Heavy handling, logistics, industry, workshops, mobile workbenches, and large carts

Usage advice: Install this fixed wheel in pairs at the back of your equipment, and complement with two swivel casters at the front for perfect directional control and effortless maneuvers.

Payment Secure

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 400

  • Material of the tread Polyurethane

  • Type of bearing Plain bore hub

  • Type fixation Fixed to plate

  • Height of the roulette in mm 240

  • Dimension plate in mm 136x110

  • Distance between axes in mm 105X80

  • Diameter of fixation in mm M10

  • Wheel width in mm 50

  • Width of the bearing band in mm 50

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 2.075 Kg
