How to choose your roulette?

Wheel INDUSTRIAL CAST IRON AND POLYURETHANE WHEEL DIAMETER 150MM LOAD 500KG AXLE 20 MM LM40 - SFPU 150/40 RB20-40

REF: 60678

Wheel heavy-duty cast iron wheel with anti-crush polyurethane coating. This wheel features a short hub measuring 40 mm in length, making it a very practical model for many situations involving the replacement of wheels that are broken. The cast iron rim with alternating sails provides increased strength. An internal spacer is present between the two 6204 2RS ball bearings. It allows for installation on heavy industrial machines, rides, carts, and wastewater treatment plants. The coefficient of friction of PU is very low, resulting in minimal rolling effort. Polyurethane is an MDI resistant to acetylene, greases, boric acid, oleic acid, cold water, ethyl alcohol, diesel fuels, glucose, milk, and mineral oils. For other substances, please contact us directly!

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 150

  • Load capacity in kilograms 500

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Specificities Heavy load

  • Bore in mm 20

  • Wheel width in mm 40

  • Hub length in mm 40

  • Width of the bearing band in mm 40

  • Shore hardness 92 Sh A

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 1.988 Kg
New

You might also like

CAST IRON AND POLYURETHANE WHEEL DIAMETER 150 MM MAX LOAD 700 KG BORE 20 MM - SFPU150/50 • Caujolle
  • Diameter of the wheel in mm 150
  • Load capacity in kilograms 700
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Specificities Non-staining
  • Bore in mm 20
  • Wheel width in mm 60
  • Hub length in mm 55
  • Width of the bearing band in mm 50
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
wheels

CAST IRON AND POLYURETHANE WHEEL DIAMETER 150 MM MAX LOAD 700 KG BORE 20 MM - SFPU150/50

Industrial wheel with polyurethane tyre and cast iron hub...

Details
Add to Compare Remove from Compare
CAST IRON AND POLYURETHANE WHEEL DIAMETER 150 MM MAX LOAD 700 KG BORE 20 MM WIDTH 50 MM- SFPU150/40 • Caujolle
  • Diameter of the wheel in mm 150
  • Load capacity in kilograms 700
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Specificities Non-staining
  • Bore in mm 20
  • Wheel width in mm 57
  • Hub length in mm 50
  • Width of the bearing band in mm 40
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
wheels

CAST IRON AND POLYURETHANE WHEEL DIAMETER 150 MM MAX LOAD 700 KG BORE 20 MM WIDTH 50 MM- SFPU150/40

Industrial wheel with polyurethane tyre and cast iron hub...

Details
Add to Compare Remove from Compare

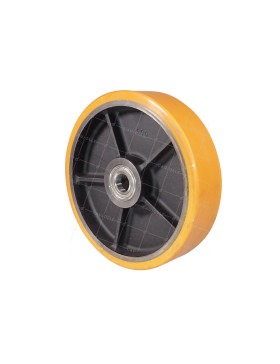

Wheel OF WASTEWATER TREATMENT PLANT DIAMETER 300 MM LOAD 2200 KG - SFPU 300x70 • Caujolle
