Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG • Caujolle
  • Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG
  • Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG
  • Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG
  • Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG
  • Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG
How to choose your roulette?

Castor OF DOUBLE RUBBER CONTAINER Wheel DIAMETER 541 MM LOAD 2500 KG

REF: 99344

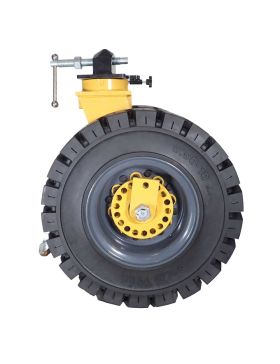

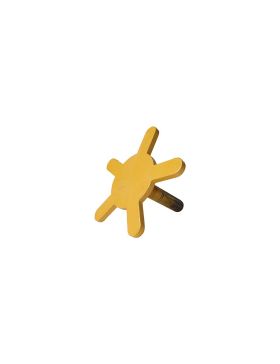

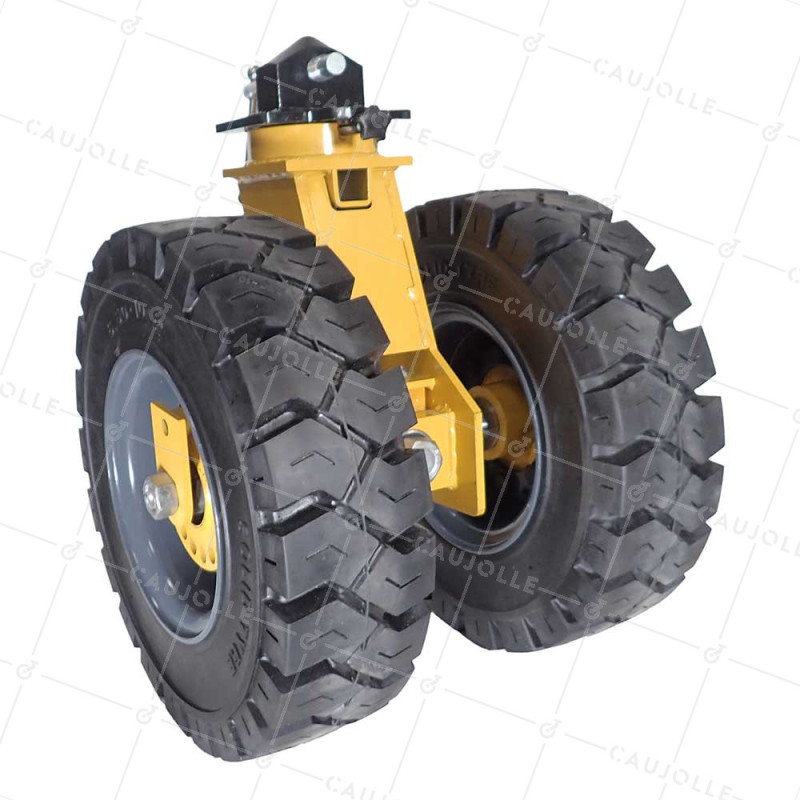

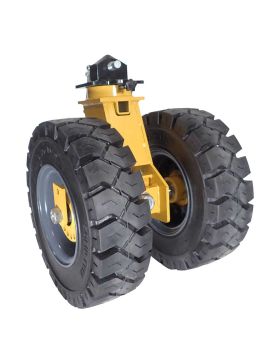

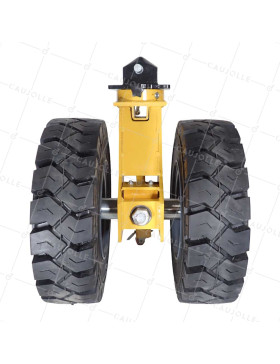

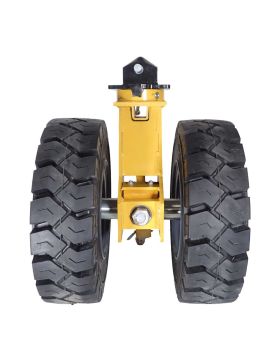

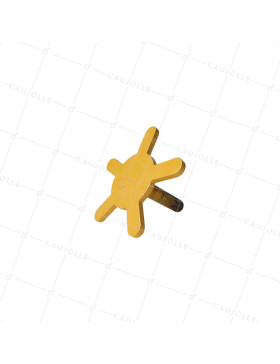

Very special model of castor for container rolling over degraded environments in the presence of mud or grass. Its extremely large diameter allows it to easily pass over gravel up to 2 cm high. The attachment is done using the worldwide twist-lock system present on all corners of ISO 1161 containers on the market. The castor is easy to set up during movement by the operator thanks to a small castor at the base that can be retracted using a spring-mounted pin attached to the castor. Once installed, you can retract the whole unit.

The treads of the wheel allow water to drain and increase grip when pulling the unit with a forklift.

You can use this wheel at speeds of up to 25 km/h. WARNING, it is advisable to divide the admissible unit load on the technical data sheet by 2. For example: if it has a unit load of 3330 kg, totaling 10,000 kg, then the total load on 4 castors at 25 km/h will be only 5,000 kg.

The frame of the castor is made of 10 mm thick steel and the plate is made of 12 mm steel reinforced by welds made by an automatic robot.

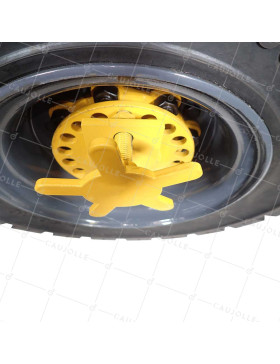

Each wheel is securely attached to a solid zinc-plated steel axle with a diameter of 65 mm. The wheel cannot unscrew during handling because the locking nut on the axle is welded.

Find our tutorial "HOW TO PUT MY CONTAINER ON Castor?" by clicking HERE

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 541

  • Load capacity in kilograms 3000

  • Material of the tread Rubber

  • Type of bearing Bearing ball bearings

  • Type fixation Side-lock

  • Height castor in mm 700

  • Specificities For container
    Heavy load

  • Width of the wheel in mm 2x150 translates to "2 times 150" in English.

  • Uses Container

  • Width of the tread in mm 2x150 translates to "2 times 150" in English.

  • Maximum speed in km/h 25

  • Minimum / Maximum Temperature in °C -20/+60

  • Directional lock Yes

  • Weight 125.000 Kg
