Wheel OF SWING GATE WITH ROUND GROOVE DIAMETER 80M LOAD 300 KG - MTSP PIV 80GR • Caujolle
  • MTSP PIV 80GR
  • MTSP PIV 80GR
  • MTSP PIV 80GR
How to choose your roulette?

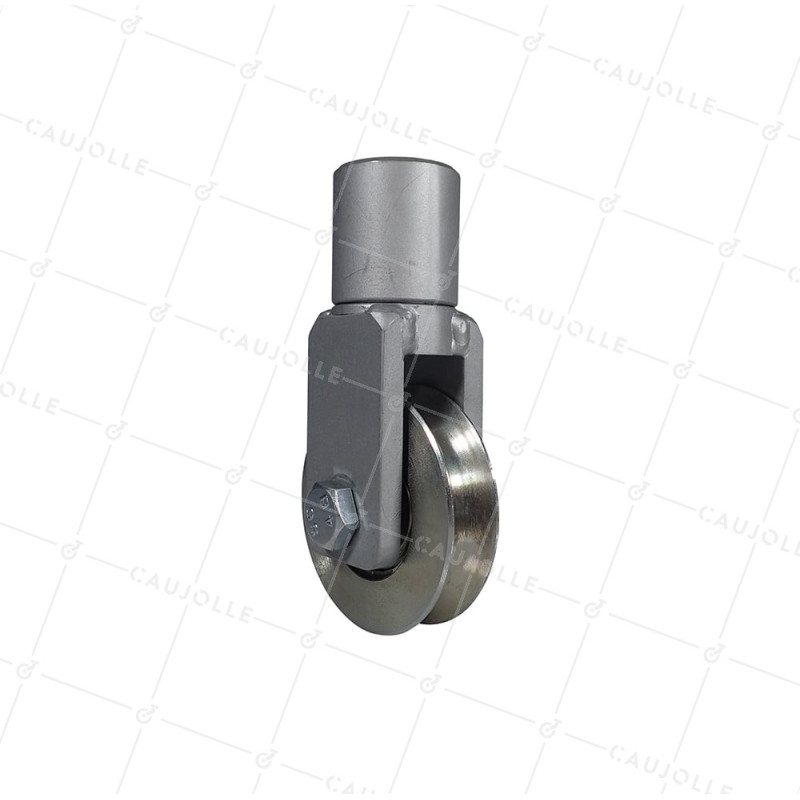

Wheel OF SWING GATE WITH ROUND GROOVE DIAMETER 80M LOAD 300 KG - MTSP PIV 80GR

REF: 60127

This castor is specially designed to meet the challenges of installing gates in tight spaces or non-linear configurations. It allows for the creation of accordion sliding gates or the adaptation of gates on a curved ground rail.

Technical Features

  • Functionality: Ideal solution for the automation and guidance of gate leaves that need to fold (accordion) or follow a curve.

  • Dimensions of the groove: Designed to perfectly fit a 16 mm rail.

  • Dimensions of the pivot: Diameter of the pivot is 41 mm.

Installation Options

The installation is flexible and adapts to the structure of your gate:

  1. Side mounting: The castor is welded directly to the side of the gate.

  2. Recessed mounting: It can be positioned inside the gate; this method requires planning for a hole of 41 mm in diameter to accommodate the pivot.

Durability and Maintenance

  • Robust design: This is a very durable product, designed to withstand outdoor use.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 80

  • Load capacity in kilograms 300

  • Material of the tread Steel

  • Type of bearing Bearing ball bearing

  • Type fixation Smooth rod

  • Height of the roulette in mm 145

  • Wheel width in mm 20

  • Rod diameter in mm 40

  • Stem length in mm 40

  • Profile type Round

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -100/+600

  • Diameter of the dome 40

  • Weight 1.410 Kg
