• New
MTSP GR 60 • Caujolle
How to choose your roulette?

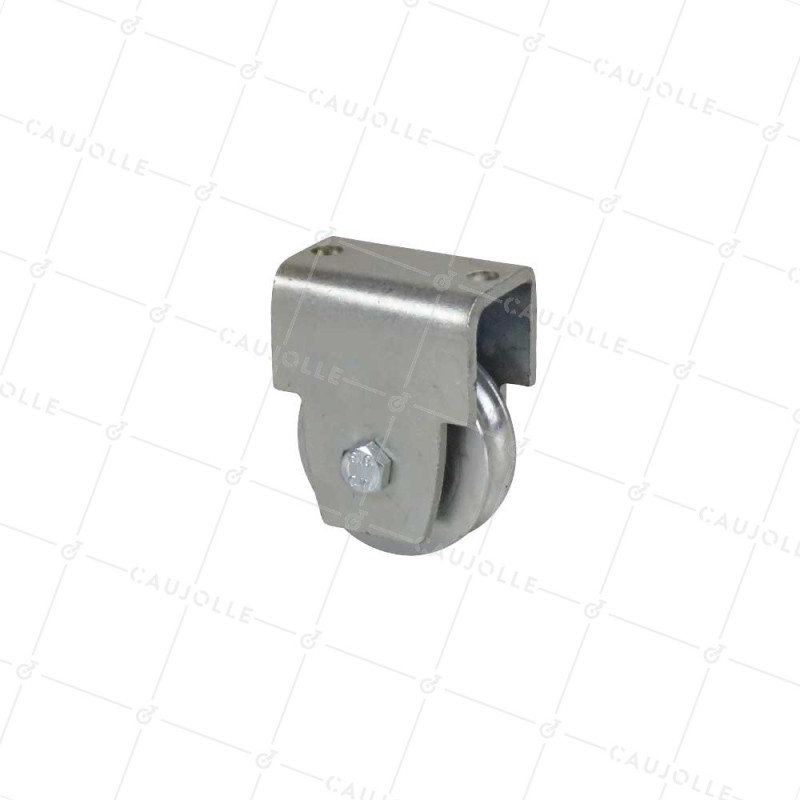

MTSP GR 60

REF: 29920
Payment Secure
Add to Compare Remove from Compare

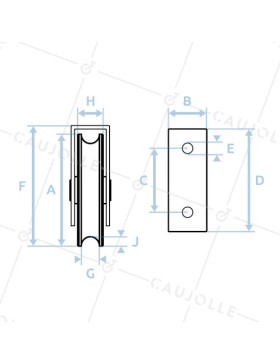

Technical sheet

  • Diameter of the wheel in mm 60

  • Load capacity in kilograms 250

  • Material of the tread Steel

  • Type of bearing Bearing ball bearing

  • Height of the roulette in mm 80

  • Dimension plate in mm 60x37

  • Distance between axes in mm 48

  • Diameter of fixation in mm M8

  • Profile type Round

  • Maximum speed in km/h 4

  • Weight 0.514 Kg

Download

29920 MTSP GR 60

MONTURE POUR PORTAIL COULISSANT ROUE À GORGE RONDE DIAMÈTRE 60 MM POUR RAIL ROND DE 10 MM CHARGE 250 KG

Download (175.99KB)
