NARROW SQUARE DOOR ROLLER WHEEL 90 MM DIAMETER FOR 10 MM SQUARE RAIL 350 KG MAX LOAD 14 MM BORE

REF: 60169

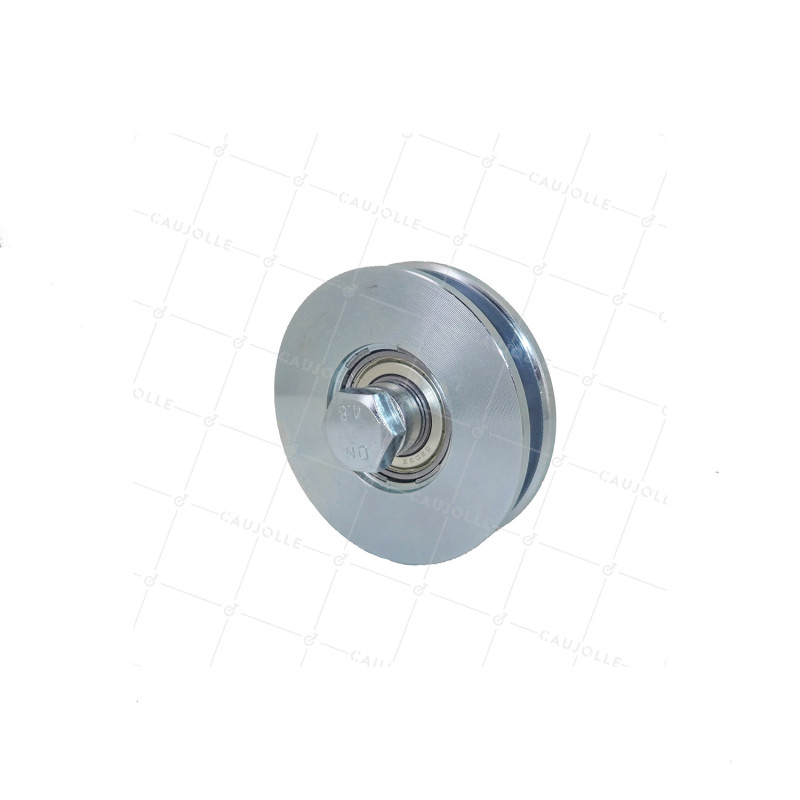

90 mm diameter roller, for thin steel door with square groove.

This square-grooved roller is made for a square rail. It can bear a maximum load of 350 kg.

This sliding door accessory houses a simple hub on ball bearings. Very easy to pose, quickly assembled, it is sold with its hardware accessories (attachment nuts and bolts).

A: 250 mm
B: 38 mm
C: 45 mm
D: 25 mm
E: 226 mm
F: 18 mm
Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 90

  • Load capacity in kilograms 350

  • Material of the tread Steel

  • Type of bearing Bearing ball bearing

  • Bore in mm 14

  • Wheel width in mm 20

  • Profile type Square

  • Maximum speed in km/h 4

  • Weight 0.842 Kg
