CAST IRON AND POLYURETHANE WHEEL DIAMETER 100 MM MAX LOAD 300 KG BORE 12 MM - SFPU100 • Caujolle
How to choose your roulette?

CAST IRON AND POLYURETHANE WHEEL DIAMETER 100 MM MAX LOAD 300 KG BORE 12 MM - SFPU100

REF: 60575

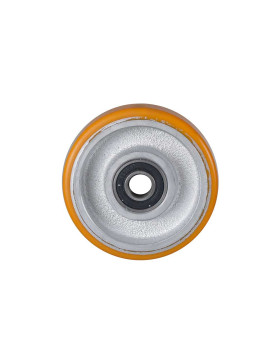

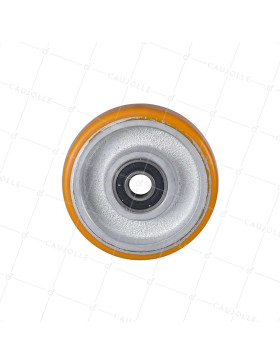

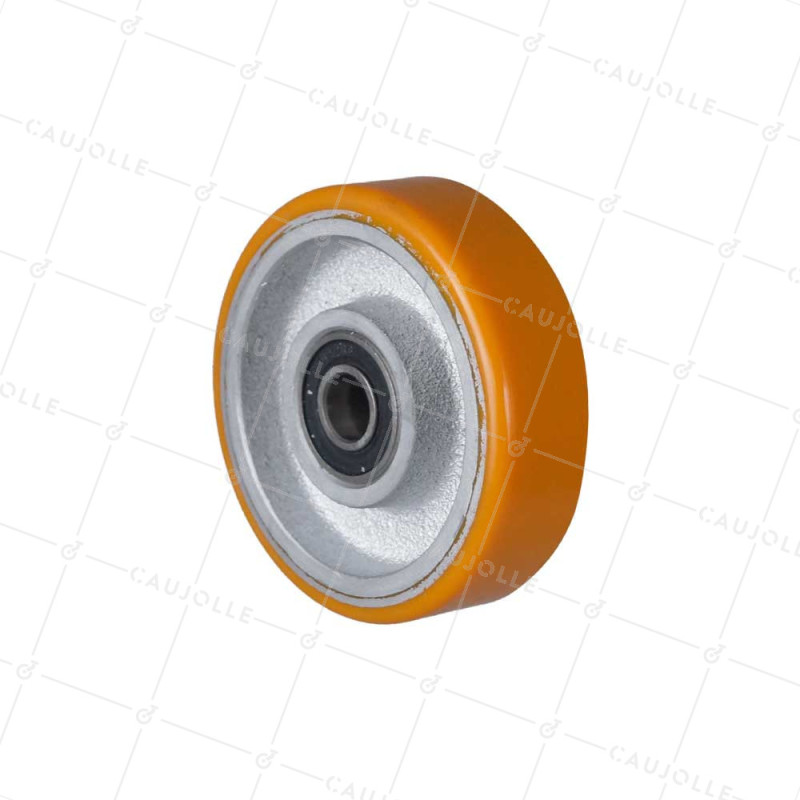

Polyurethane and cast iron wheel for goods handling diameter 100 mm.

This wheel is made up of an orange cast polyurethane flat profile tyre, moulded onto a grey reinforced monoblock cast iron body.

The 12 mm diameter hub with bearings means reduced friction and less effort required to start it moving.

Particularly tough and strong, this wheel is perfect for moving heavy loads with substantial weight.

This product perfect withstands bearing static loads for years without losing shape.



Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 100

  • Load capacity in kilograms 250

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Specificities Non-staining

  • Bore in mm 15

  • Wheel width in mm 30

  • Hub length in mm 30

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 0.714 Kg
