GUIDE FOR SLIDING GATE WITH A THICKNESS OF 28 MM TO 52 MM

REF: 60213

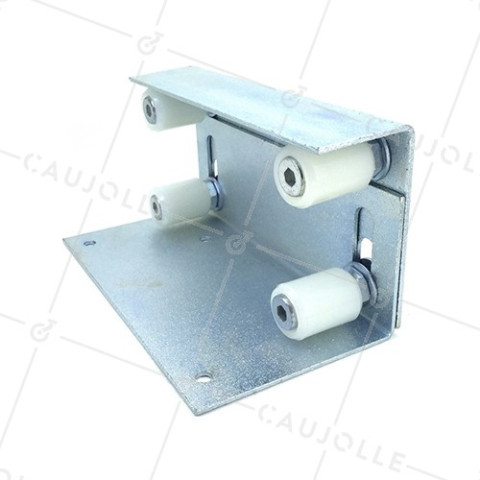

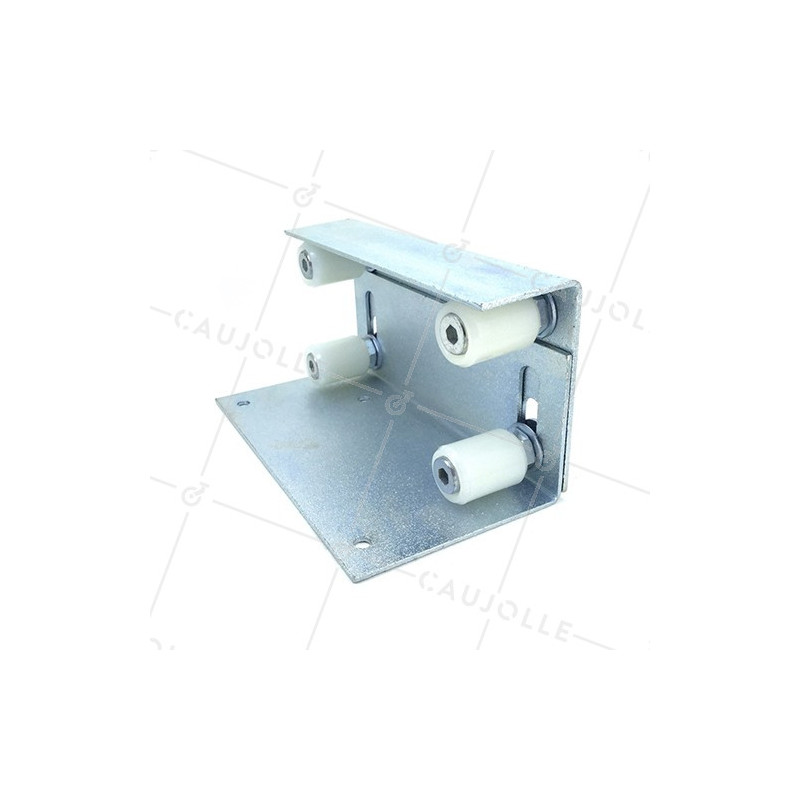

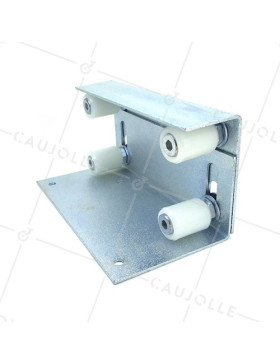

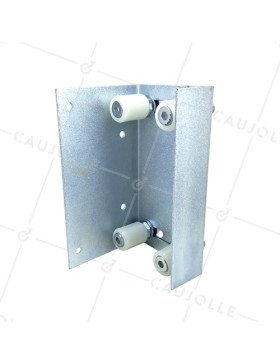

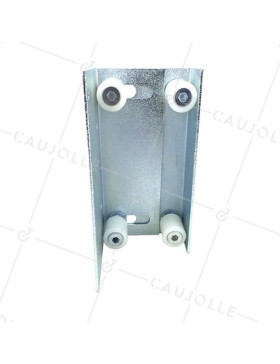

Adjustable guide with 4 olives for a gate ranging from 28 to 52mm in thickness.

This set contains a steel guide (in 2 parts) and 4 nylon olives measuring 40x30mm. The olives are removable. The guide plate measures 220x173mm up to 220x210mm.

For your door, wicket gate, or sliding gate, this guide is designed for a height weld, starting from one of the two legs, for example. One of the legs measures 55mm high by 220mm wide, and the other 125mm high by 220mm wide.

A: from 173 to 210 mm

B: 220 mm

C: 55 mm

H: 125 mm

R: from 40 to 105mm

S: 3 mm

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 30

  • Maximum speed in km/h 4

  • Weight 2.164 Kg
