ULTRA LARGE PNEUMATIC CASTOR 414 MM DIAMETER 300 KG MAX LOAD - S20-1-400PIV • Caujolle
  • VERY LARGE PNEUMATIC WHEEL DIAMETER 400 MM MAX LOAD 300 KG - S20-1-400PIV
  • VERY LARGE PNEUMATIC WHEEL DIAMETER 400 MM MAX LOAD 300 KG - S20-1-400PIV
  • VERY LARGE PNEUMATIC WHEEL DIAMETER 400 MM MAX LOAD 300 KG - S20-1-400PIV
How to choose your roulette?

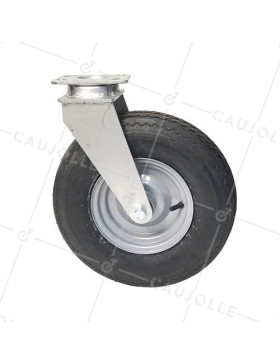

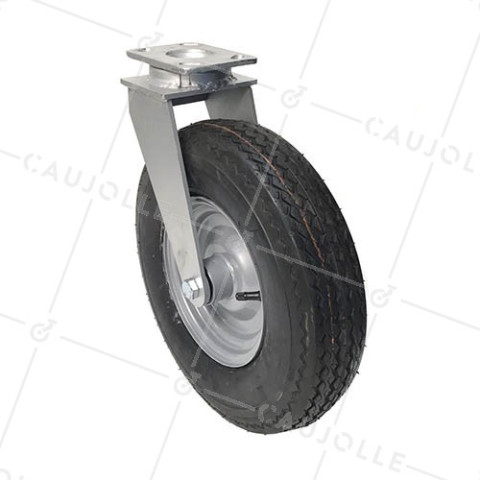

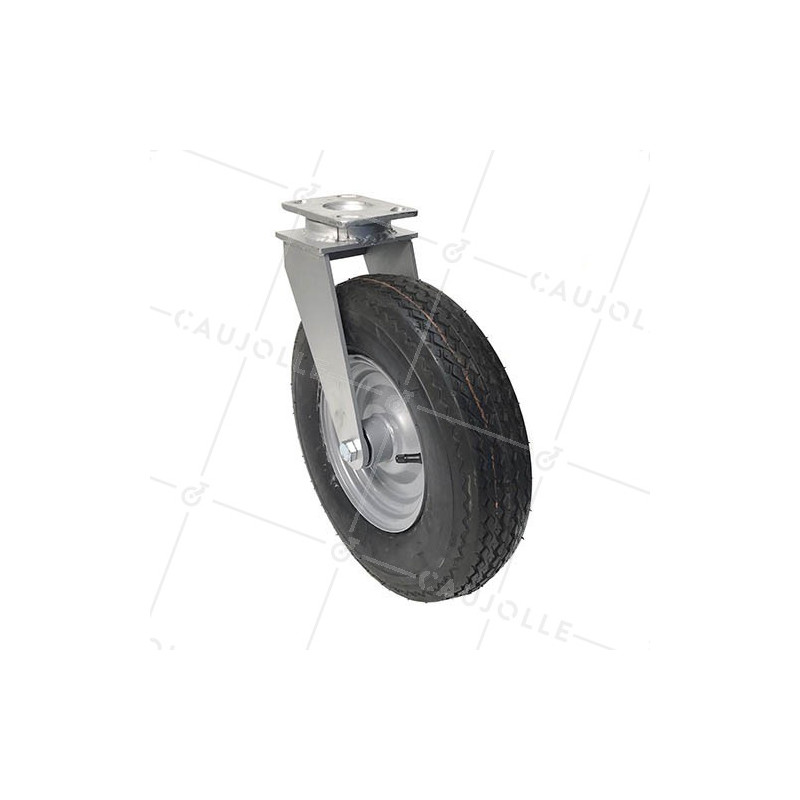

ULTRA LARGE PNEUMATIC CASTOR 414 MM DIAMETER 300 KG MAX LOAD - S20-1-400PIV

REF: 23410

This caster for goods-handling is perfect when you need to move very heavy loads up to a maximum of 1 tonne over 4 wheels.

It is made up of a fixed mounting in pressed chromate galvanised sheet metal, reinforced thickness 5 mm, pivoting on two ball-bearing crowns. The wheel itself has a diameter of 250 mm and includes a rim with aluminium body and a flat profile orange polyurethane tyre with the central hub with the bearings having a diameter of 25 mm. This swivel wheel has a bolted axe.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 414

  • Load capacity in kilograms 300

  • Material of the tread Inflatable rubber

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 488

  • Bore in mm 25

  • Dimension plate in mm 138x110

  • Distance between axes in mm 105x80

  • Diameter of fixation in mm M10

  • Wheel width in mm 110

  • Offset in mm 100

  • Dimensions in mm 114

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -40/+80

  • Weight 9.555 Kg
