Castor EXTRA LOW SWIVEL CASTOR DIAMETER 25 MM HEIGHT 54 MM LOAD 100KG - MINI SURB 25P • Caujolle
  • Castor EXTRA LOW SWIVEL CASTOR DIAMETER 25 MM HEIGHT 54 MM LOAD 100KG - MINI SURB 25P
  • Castor EXTRA LOW SWIVEL CASTOR DIAMETER 25 MM HEIGHT 54 MM LOAD 100KG - MINI SURB 25P
  • Castor EXTRA LOW SWIVEL CASTOR DIAMETER 25 MM HEIGHT 54 MM LOAD 100KG - MINI SURB 25P
How to choose your roulette?

Castor EXTRA LOW SWIVEL CASTOR DIAMETER 25 MM HEIGHT 54 MM LOAD 100KG - MINI SURB 25P

REF: 99315

Castor very interesting due to its very low height!

Indeed, its total height of 54 mm (overall height) allows you to place almost any furniture on castors without raising the working height too much for an operator.

The polyurethane (the material of the wheel) is ideal on smooth floors but without gravel for this small diameter.

Inside the wheel are 2 roller bearings to limit the pushing effort of the operator.

The offset of the wheel as well as its very low footprint allow it to be placed in very tight spaces without hindering its pivoting. Indeed, its fork only extends a few millimeters (about 6 mm from the plate).

The steel thickness of 2 mm allows it to support very high loads relative to its very small diameter.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 25

  • Load capacity in kilograms 100

  • Material of the tread Polyurethane

  • Type of bearing Roller bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 54

  • Specificities Heavy load

  • Bore in mm 8

  • Dimension plate in mm 60x48

  • Distance between axes in mm 48x35

  • Diameter of fixation in mm M6

  • Wheel width in mm 27

  • Hub length in mm 27

  • Style Industrial

  • Width of the bearing band in mm 21

  • Offset in mm 15

  • Dimensions in mm 30

  • Shore hardness 92 Sh A

  • Maximum speed in km/h 1

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 0.213 Kg

You might also like

EXTRA-LOW CASTOR WHEEL SURB 50 STEEL • Caujolle
  • Diameter of the wheel in mm 50
  • Load capacity in kilograms 270
  • Material of the tread Steel
  • Type of bearing Plain bore hub
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 64
  • Specificities Heavy load
  • Dimension plate in mm 95
  • Distance between axes in mm 36x36
  • Diameter of fixation in mm M6
  • Wheel width in mm 30
  • Offset in mm 16.5
  • Dimensions in mm 41.5
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -100/+600
  • Diameter of the dome 95
handling-and-industry-castor-wheels

EXTRA-LOW CASTOR WHEEL SURB 50 STEEL

Industrial castor wheel heavy load at low height,...

Details
Add to Compare Remove from Compare
EXTRA-LOW CASTOR WHEEL SURB 50 NYLON • Caujolle
  • Diameter of the wheel in mm 50
  • Load capacity in kilograms 160
  • Material of the tread Nylon
  • Type of bearing Plain bore hub
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 64
  • Specificities Heavy load
  • Dimension plate in mm 95
  • Distance between axes in mm 36x36
  • Diameter of fixation in mm M6
  • Wheel width in mm 30
  • Width of the bearing band in mm 2x 14
  • Offset in mm 16.5
  • Dimensions in mm 41.5
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+85
  • Diameter of the dome 95
handling-and-industry-castor-wheels

EXTRA-LOW CASTOR WHEEL SURB 50 NYLON

Industrial castor wheel heavy load at low height,...

Details
Add to Compare Remove from Compare
EXTRA-LOW CASTOR WHEEL HEAVY LOAD 100KG SURB 35 O • Caujolle
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation A bolt hole (central hole)
  • Height of the roulette in mm 58
  • Specificities Heavy load
  • Diameter of fixation in mm M10
  • Wheel width in mm 27
  • Width of the bearing band in mm 27
  • Offset in mm 12
  • Dimensions in mm 30
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 45.5
castors

EXTRA-LOW CASTOR WHEEL HEAVY LOAD 100KG SURB 35 O

Industrial castor wheel 35 mm diameter attachment in...

Details
Add to Compare Remove from Compare
EXTRA-LOW CASTOR WHEEL HEAVY LOAD 100KG SURB 35 P • Caujolle
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 65
  • Specificities Heavy load
    Non-staining
  • Dimension plate in mm 60x48
  • Distance between axes in mm 48x35
  • Diameter of fixation in mm M6
  • Wheel width in mm 27
  • Width of the bearing band in mm 27
  • Offset in mm 12
  • Dimensions in mm 30
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
handling-and-industry-castor-wheels

EXTRA-LOW CASTOR WHEEL HEAVY LOAD 100KG SURB 35 P

Industrial castor wheel 35 mm diameter, swivel plate.

Details
Add to Compare Remove from Compare

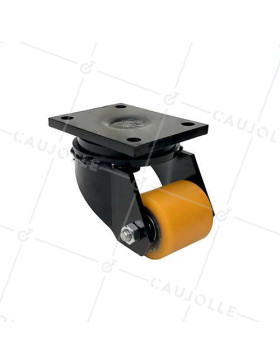

EXTRA LOW BLACK HEAVYWEIGHT CASTOR DIAMETER 70 MM MAX LOAD 500 KG HEIGHT 125 MM - SURB 70 NOIRE • Caujolle
  • Diameter of the wheel in mm 70
  • Load capacity in kilograms 500
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 125
  • Dimension plate in mm 136x110
  • Distance between axes in mm 105x80
  • Diameter of fixation in mm M12
  • Wheel width in mm 70
  • Width of the bearing band in mm 66
  • Offset in mm 68
  • Dimensions in mm 104
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
handling-and-industry-castor-wheels

EXTRA LOW BLACK HEAVYWEIGHT CASTOR DIAMETER 70 MM MAX LOAD 500 KG HEIGHT 125 MM - SURB 70 NOIRE

Black extra-low castor 70 mm

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW HEAVY-DUTY CASTOR DIAMETER 50 MM HEIGHT 72 MM LOAD 150 KG - SURB 50 PAF • Caujolle
  • New
  • Diameter of the wheel in mm 50
  • Load capacity in kilograms 150
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 71.5
  • Specificities Heavy load
  • Dimension plate in mm 60x60
  • Distance between axes in mm 45x45
  • Diameter of fixation in mm M6
  • Wheel width in mm 40
  • Brake With brake
  • Uses Castor industrial
  • Width of the bearing band in mm 40
  • Profile type Dish
  • Offset in mm 22.5
  • Dimensions in mm 85
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
castors

Castor EXTRA-LOW HEAVY-DUTY CASTOR DIAMETER 50 MM HEIGHT 72 MM LOAD 150 KG - SURB 50 PAF

Castor lowered diameter 50 mm

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW WITH STRONG BRAKE LOAD DIAMETER 35 MM HEIGHT 66 MM LOAD 100 KG - SURB 35 PAF • Caujolle
  • New
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 67
  • Specificities Heavy load
    Non-staining
  • Dimension plate in mm 60x48
  • Distance between axes in mm 48x35
  • Diameter of fixation in mm M6
  • Wheel width in mm 27
  • Brake With brake
  • Width of the bearing band in mm 25
  • Offset in mm 15
  • Dimensions in mm 72
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
handling-and-industry-castor-wheels

Castor EXTRA-LOW WITH STRONG BRAKE LOAD DIAMETER 35 MM HEIGHT 66 MM LOAD 100 KG - SURB 35 PAF

Castor extra low with brake diameter 35 mm

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW HEAVY LOAD DIAMETER 35 MM LOAD 100KG WITH 10 MM FIXING HEIGHT 58 MM - SURB 35 OAF • Caujolle
  • New
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation A bolt hole (central hole)
  • Height of the roulette in mm 58
  • Specificities Heavy load
  • Diameter of fixation in mm M10
  • Wheel width in mm 27
  • Brake With brake
  • Width of the bearing band in mm 25
  • Offset in mm 15
  • Dimensions in mm 72
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 45.5
handling-and-industry-castor-wheels

Castor EXTRA-LOW HEAVY LOAD DIAMETER 35 MM LOAD 100KG WITH 10 MM FIXING HEIGHT 58 MM - SURB 35 OAF

Bolt hole castor of 10 mm heavy load

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW HEAVY LOAD DIAMETER 35 MM LOAD 100KG WITH 10 MM THREADED ROD HEIGHT 58 MM - SURB 35 T • Caujolle
  • New
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Threaded rod
  • Height of the roulette in mm 58
  • Specificities Heavy load
    Non-staining
  • Wheel width in mm 27
  • Rod diameter in mm 10
  • Stem length in mm 17
  • Width of the bearing band in mm 25
  • Offset in mm 15
  • Dimensions in mm 33
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 45.5
castors

Castor EXTRA-LOW HEAVY LOAD DIAMETER 35 MM LOAD 100KG WITH 10 MM THREADED ROD HEIGHT 58 MM - SURB 35 T

Castor extra low with a threaded rod of 10 mm diameter

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW HEAVY LOAD WITH BRAKE DIAMETER 35 MM LOAD 100KG WITH 10 MM THREADED ROD HEIGHT 58 MM - SURB 35 TAF • Caujolle
  • New
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Threaded rod
  • Height of the roulette in mm 58
  • Specificities Heavy load
  • Wheel width in mm 27
  • Rod diameter in mm 10
  • Stem length in mm 17
  • Brake With brake
  • Width of the bearing band in mm 25
  • Offset in mm 15
  • Dimensions in mm 72
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 45.5
castors

Castor EXTRA-LOW HEAVY LOAD WITH BRAKE DIAMETER 35 MM LOAD 100KG WITH 10 MM THREADED ROD HEIGHT 58 MM - SURB 35 TAF

Castor extra low in polyurethane diameter 35 mm

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW HEAVY LOAD FIXED DIAMETER 35 MM LOAD 100KG HEIGHT 66 MM - SURB 35 FIXED • Caujolle
  • New
  • Diameter of the wheel in mm 35
  • Load capacity in kilograms 100
  • Material of the tread Polyurethane
  • Type of bearing Bearing ball bearing
  • Type fixation Fixed to plate
  • Height of the roulette in mm 67
  • Specificities Heavy load
    Non-staining
  • Dimension plate in mm 54x70
  • Distance between axes in mm 36x54
  • Diameter of fixation in mm M8
  • Wheel width in mm 27
  • Style Industrial
  • Width of the bearing band in mm 25
  • Maximum speed in km/h 1
  • Minimum / Maximum Temperature in °C -20/+80
castors

Castor EXTRA-LOW HEAVY LOAD FIXED DIAMETER 35 MM LOAD 100KG HEIGHT 66 MM - SURB 35 FIXED

Castor fixed heavy load extra low

Details
Add to Compare Remove from Compare
Castor EXTRA-LOW CAST IRON AND POLYURETHANE HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU • Caujolle
  • New
  • Diameter of the wheel in mm 50
  • Load capacity in kilograms 160
  • Material of the tread Polyurethane
  • Type of bearing Plain bore hub
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 64
  • Specificities Heavy load
    Non-staining
  • Dimension plate in mm 95
  • Distance between axes in mm 36x36
  • Diameter of fixation in mm M6
  • Wheel width in mm 30
  • Width of the bearing band in mm 2x 13 translates to "2 times 13" in English.
  • Offset in mm 15
  • Dimensions in mm 47.5
castors

Castor EXTRA-LOW CAST IRON AND POLYURETHANE HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU

Castor extra low in cast iron with a polyurethane coating...

Details
Add to Compare Remove from Compare

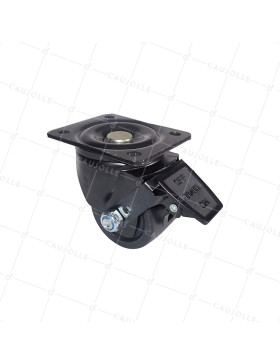

Castor EXTRA LOW SWIVEL NYLON FIBER HEAVY LOAD DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75PAF • Caujolle
  • New
  • Diameter of the wheel in mm 75
  • Load capacity in kilograms 400
  • Material of the tread Reinforced nylon with glass fibers
  • Type of bearing Bearing ball bearing
  • Type fixation Pivoting to plate (plate)
  • Height of the roulette in mm 105
  • Specificities Heavy load
  • Dimension plate in mm 105x85
  • Distance between axes in mm 60x80
  • Diameter of fixation in mm M8
  • Wheel width in mm 50
  • Brake With brake
  • Style Industrial
  • Width of the bearing band in mm 50
  • Offset in mm 17.5
  • Dimensions in mm 97.5
  • Shore hardness 75 Sh D
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -30/+80
handling-and-industry-castor-wheels

Castor EXTRA LOW SWIVEL NYLON FIBER HEAVY LOAD DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75PAF

Castor extra low very high load nylon loaded with...

Details
Add to Compare Remove from Compare

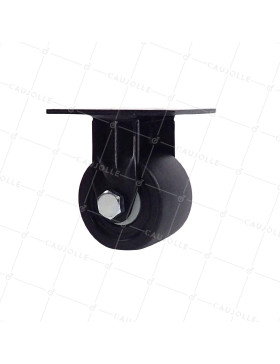

Castor FIXED EXTRA LOW NYLON FIBER HEAVY LOAD DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75 FIXED • Caujolle
  • New
  • Diameter of the wheel in mm 75
  • Load capacity in kilograms 400
  • Material of the tread Reinforced nylon with glass fibers
  • Type of bearing Bearing ball bearing
  • Type fixation Fixed to plate
  • Height of the roulette in mm 105
  • Specificities Heavy load
  • Dimension plate in mm 105x85
  • Distance between axes in mm 60x80
  • Diameter of fixation in mm M8
  • Wheel width in mm 50
  • Hub length in mm 52
  • Style Industrial
  • Width of the bearing band in mm 50
  • Shore hardness 75 Sh D
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -30/+80
handling-and-industry-castor-wheels

Castor FIXED EXTRA LOW NYLON FIBER HEAVY LOAD DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75 FIXED

Castor fixed in nylon loaded with fiberglass for a high...

Details
Add to Compare Remove from Compare
