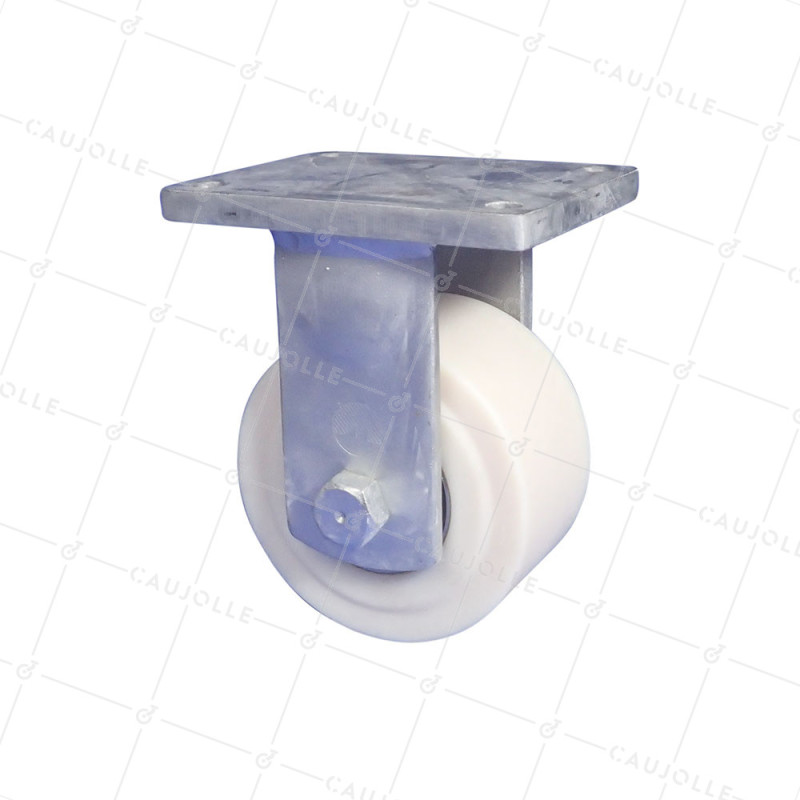

Castor FIXED IN NYLON DIAMETER 150 MM EXTREME LOAD 3000 KG - STEC NYLON 150F • Caujolle
  • Castor FIXED IN NYLON DIAMETER 150 MM EXTREME LOAD 3000 KG - STEC NYLON 150F
  • Castor FIXED IN NYLON DIAMETER 150 MM EXTREME LOAD 3000 KG - STEC NYLON 150F
  • Castor FIXED IN NYLON DIAMETER 150 MM EXTREME LOAD 3000 KG - STEC NYLON 150F
How to choose your roulette?

Castor FIXED IN NYLON DIAMETER 150 MM EXTREME LOAD 3000 KG - STEC NYLON 150F

REF: 26158

Castor made of reinforced steel with a thickness of 14 mm. The nylon used for the manufacturing of the wheel is extremely dense and reinforced to prevent the wheel from crushing under long-term static loads.

For a total weight of up to 9000 kg on 4 casters.

These fixed casters can be used to create structures that move in a unidirectional manner. The strong thickness of all components (M20 bolts), fork thickness of 10 mm, allows for the safe movement of loads.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 150

  • Load capacity in kilograms 3000

  • Material of the tread Nylon

  • Type of bearing Bearing ball bearing

  • Type fixation Fixed to plate

  • Height of the roulette in mm 212

  • Specificities Heavy load

  • Bore in mm 35

  • Dimension plate in mm 175x140

  • Distance between axes in mm 140x105

  • Diameter of fixation in mm M14

  • Wheel width in mm 80

  • Hub length in mm 85

  • Width of the bearing band in mm 80

  • Shore hardness 80 Sh D

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -30/+80

  • Weight 7.690 Kg
