Castor EXTRA LOW SWIVEL NYLON FIBER DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75P • Caujolle
  • Castor EXTRA LOW SWIVEL NYLON FIBER DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75P
  • Castor EXTRA LOW SWIVEL NYLON FIBER DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75P
  • Castor EXTRA LOW SWIVEL NYLON FIBER DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75P

Castor EXTRA LOW SWIVEL NYLON FIBER DIAMETER 75 MM LOAD 600 KG - BLACK SURB 75P

REF: 99319

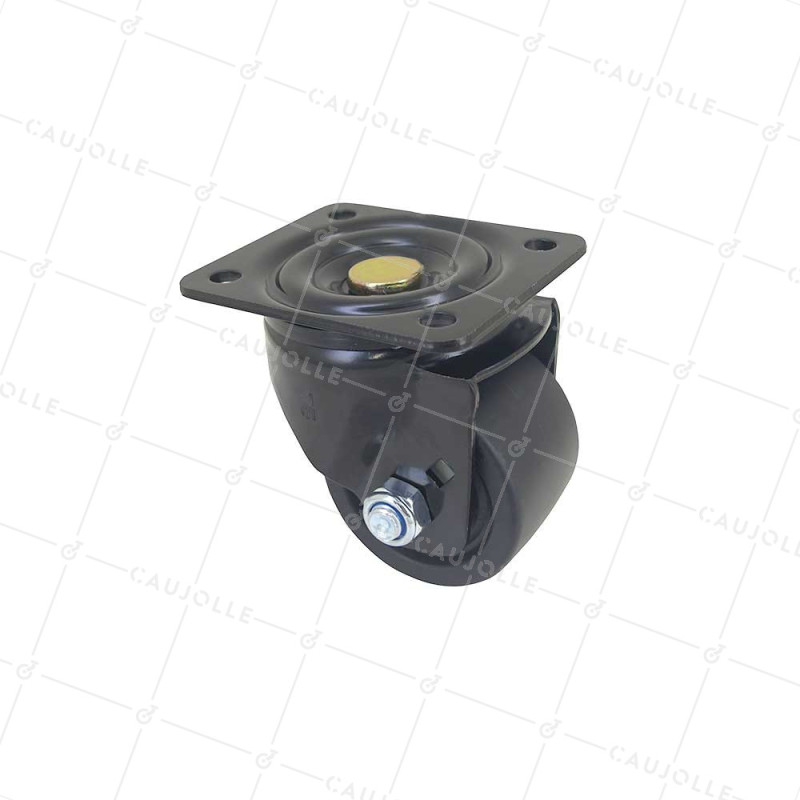

Castor ultra low of very high quality in fiber nylon. The load capacity is particularly high for a model of this diameter as you can load up to 1800 kg on 4 units (steel thickness of 4 mm on the plate). The material allows for increased resistance to static loads over the long term (so no crushing or permanent deformation is to be expected). 2 ball bearings are present inside the wheel to limit the effort when starting the wheel.

Its second advantage is its very low bulk, which only exceeds the narrowest edge of the plate by 2 mm. You can therefore install them under industrial machines without the mount hitting the feet of the technicians.

Payment Secure

Technical sheet

  • Diameter of the wheel in mm 75

  • Load capacity in kilograms 400

  • Material of the tread Reinforced nylon with glass fibers

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 105

  • Specificities Heavy load

  • Dimension plate in mm 105x85

  • Distance between axes in mm 60x80

  • Diameter of fixation in mm M8

  • Wheel width in mm 50

  • Width of the bearing band in mm 50

  • Offset in mm 17.5

  • Dimensions in mm 55

  • Shore hardness 75 Sh D

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -30/+80

  • Weight 1.170 Kg
