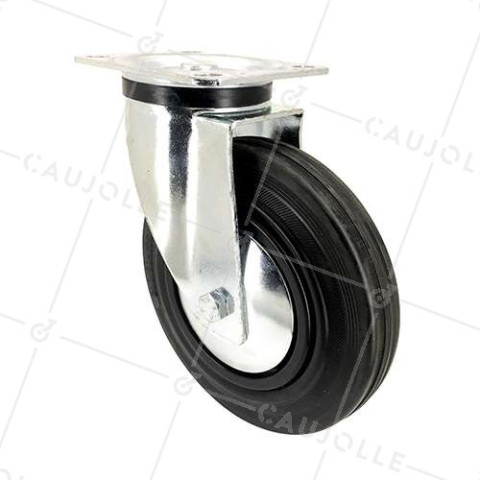

RUBBER INDUSTRIAL CASTOR WITH FIXING PLATE DIAMETER 200 MM MAX LOAD 200 KG - S74C200

REF: 22241

This swivel castor with fixing plate designed for goods handling, diameter 200 mm, is composed of a galvanised steel mount.

This model is considerably stronger than the standard castors of the same size, meaning that you will be able to move goods or equipment in a workshop with ease. The rubber wheel acts as a shock absorber when the floor is uneven or has small obstacles.

We have fitted a threadguard to the wheel (metal rim) to block any impurities on the floor and enable the wheel to be used without unnecessary maintenance during its long working life.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 200

  • Material of the tread Rubber

  • Type of bearing Roller bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 240

  • Bore in mm 20

  • Dimension plate in mm 136x110

  • Distance between axes in mm 105x80

  • Diameter of fixation in mm M10

  • Wheel width in mm 45

  • Width of the bearing band in mm 29

  • Offset in mm 55

  • Dimensions in mm 155

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 3.072 Kg

You might also like

Série S74 OC & N° 22244 • Caujolle
  • Diameter of the wheel in mm 200
  • Load capacity in kilograms 200
  • Material of the tread Rubber
  • Type of bearing Roller bearing
  • Type fixation A bolt hole (central hole)
  • Height of the roulette in mm 239
  • Bore in mm 20
  • Diameter of fixation in mm M16
  • Wheel width in mm 45
  • Hub length in mm 60
  • Width of the bearing band in mm 29
  • Offset in mm 55
  • Dimensions in mm 155
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 103
castors

Série S74 OC & N° 22244

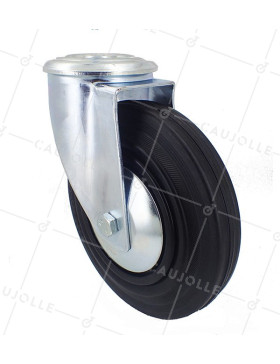

Castor with a rubber bolt hole diameter 200 - S74OC

Details
Add to Compare Remove from Compare
BRAKED BOLTHOLE CASTOR IN RUBBER 200 MM DIAMETER MAX LOAD 200 KG - S74OC 200AF • Caujolle
  • Diameter of the wheel in mm 200
  • Load capacity in kilograms 200
  • Material of the tread Rubber
  • Type of bearing Roller bearing
  • Type fixation A bolt hole (central hole)
  • Height of the roulette in mm 239
  • Bore in mm 20
  • Diameter of fixation in mm M16
  • Wheel width in mm 45
  • Hub length in mm 60
  • Brake With brake
  • Width of the bearing band in mm 29
  • Offset in mm 55
  • Dimensions in mm 155
  • Maximum speed in km/h 4
  • Minimum / Maximum Temperature in °C -20/+80
  • Diameter of the dome 103
castors

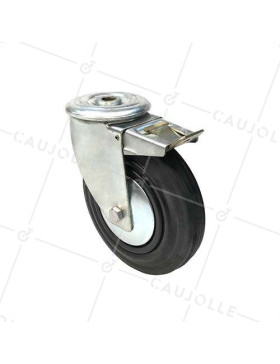

BRAKED BOLTHOLE CASTOR IN RUBBER 200 MM DIAMETER MAX LOAD 200 KG - S74OC 200AF
