FIXED RUBBER INDUSTRIAL CASTOR DIAMETER 200 MM MAX LOAD 200 KG - S75C200

REF: 22371

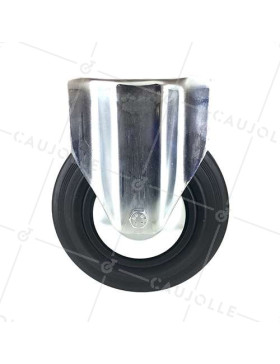

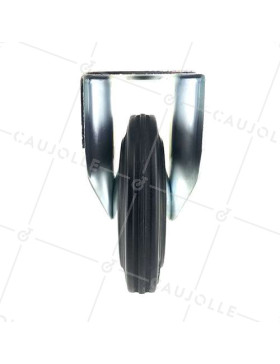

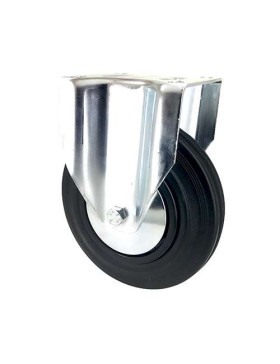

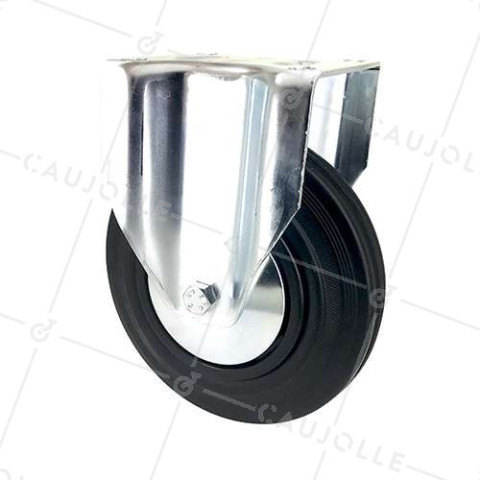

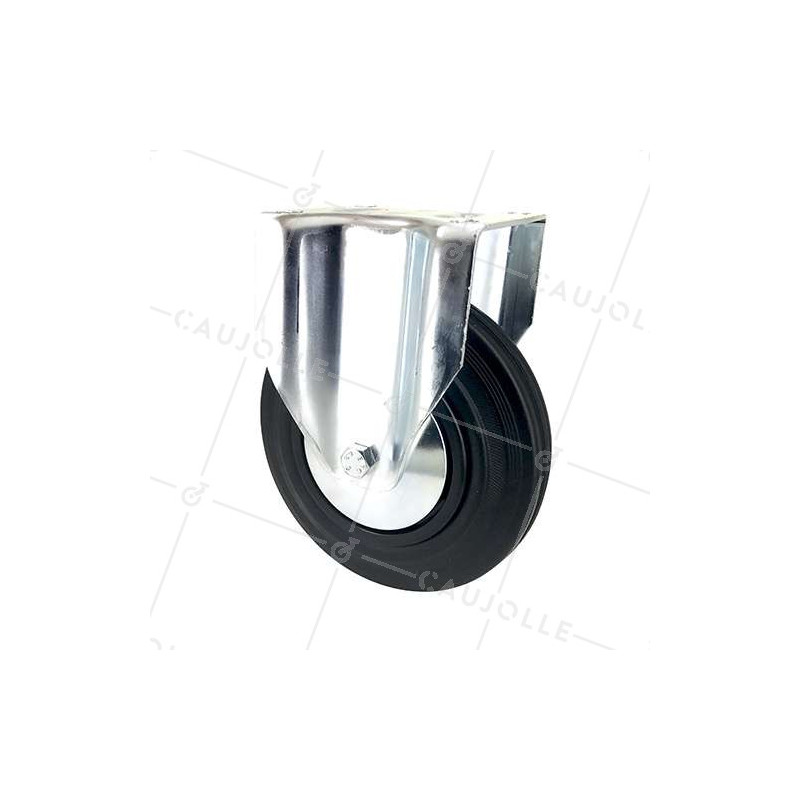

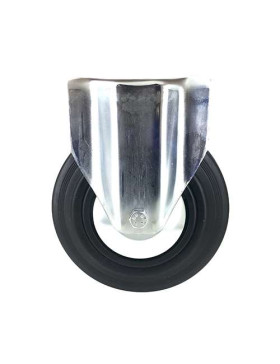

This goods handling castor with fixed plate, diameter 200 mm, is composed of a galvanised steel mount.

The black rubber tread is mounted on a black plastic rim with threadguard and roller-bearings.

The castor swivels on two rows of bearings.

It is ideal for goods handling in the workshop on uneven floors, but is also useful for giving extra height to a coffee table in the sitting room.

This heavy duty castor enables silent moving for weights of over 600 kg on 4 castors (calculated on 3 points).

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 200

  • Material of the tread Rubber

  • Type of bearing Roller bearing

  • Type fixation Fixed to plate

  • Height of the roulette in mm 240

  • Bore in mm 20

  • Dimension plate in mm 136x110

  • Distance between axes in mm 105x80

  • Diameter of fixation in mm M10

  • Wheel width in mm 45

  • Width of the bearing band in mm 29

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 2.718 Kg
