FIXED CASTOR IN CAST IRON AND POLYURETHANE 200 MM DIAMETER 1,400 KG MAX LOAD - STEC 200F • Caujolle
  • FIXED CAST IRON AND POLYURETHANE CASTER 1400 KG DIAMETR 200 MM - STEC 200F
  • FIXED CAST IRON AND POLYURETHANE CASTER 1400 KG DIAMETR 200 MM - STEC 200F
  • FIXED CAST IRON AND POLYURETHANE CASTER 1400 KG DIAMETR 200 MM - STEC 200F
How to choose your roulette?

FIXED CASTOR IN CAST IRON AND POLYURETHANE 200 MM DIAMETER 1,400 KG MAX LOAD - STEC 200F

REF: 26151

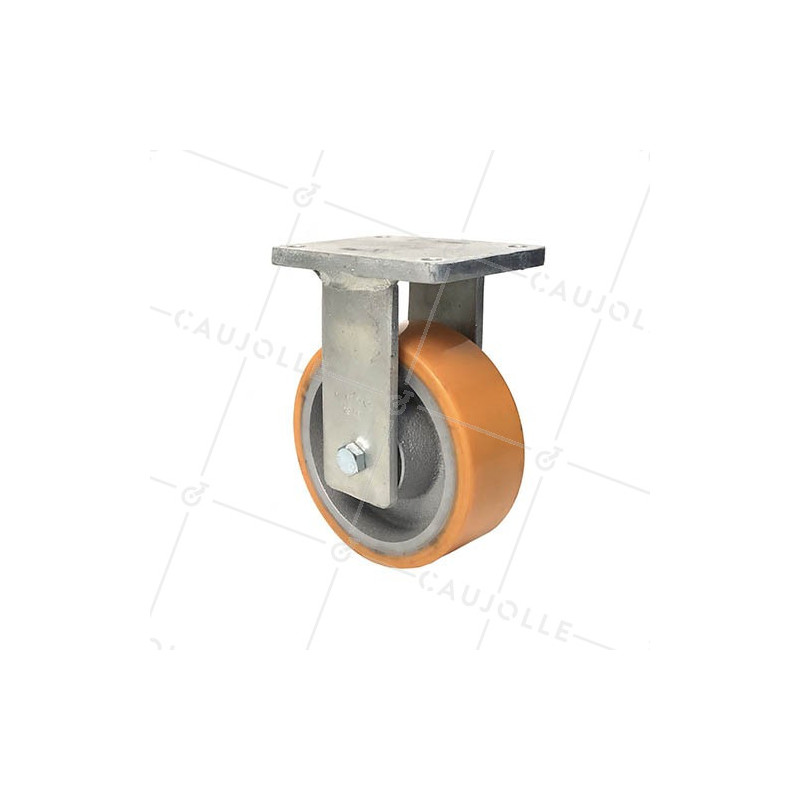

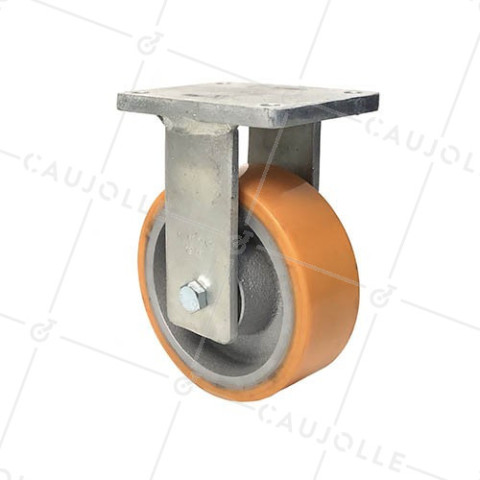

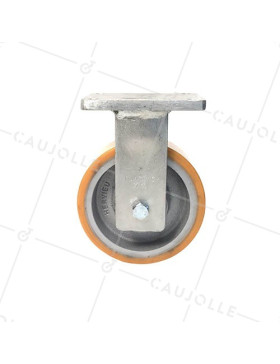

This fixed caster is made up of a mechanically welded mounting in very thick steel (15 mm) and a cast iron wheel with polyurethane tyre. The 200 mm wheel is composed of a hub with bearings to limit friction wear when moving heavy loads.

Particularly tough, this caster is ideal for extreme goods-handling situations carrying up to 1400 kg per wheel ie 4200 kg over 3 wheels (the 4th is not counted as it is always possible that all four wheels may not always be in contact with the floor).

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 1400

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Fixed to plate

  • Height of the roulette in mm 260

  • Specificities Non-staining

  • Dimension plate in mm 175x140

  • Distance between axes in mm 140x105

  • Diameter of fixation in mm M14

  • Wheel width in mm 72

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 12.109 Kg
