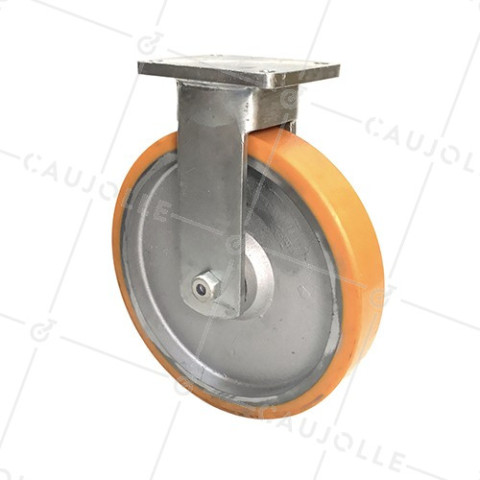

FIXED INDUSTRIAL CASTOR FOR GOODS HANDLING IN CAST IRON AND POLYURETHANE DIAMETER 400 MM MAX LOAD 2500 KG - STEC400FIXE

REF: 26181

This fixed castor is composed of a very thick and particularly solid mechanically welded steel mounting and wheel with polyurethane tread and cast iron rim. The 400 mm diameter wheel is fitted with a ball-bearing bore.

Very strong and robust, this castor would be perfect for moving any heavy load. Designed for professional use, it can be used to equip scaffolding, wine vats, amongst others.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 400

  • Load capacity in kilograms 2500

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Fixed to plate

  • Height of the roulette in mm 475

  • Specificities Non-staining

  • Dimension plate in mm 200x160

  • Distance between axes in mm 160x120

  • Diameter of fixation in mm M18

  • Wheel width in mm 75

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 35.000 Kg
