CAST IRON POLYURETHANE SWIVEL CASTOR 200 MM DIAMETER 1400 KG MAX LOAD - STEC 200PIV

REF: 26150

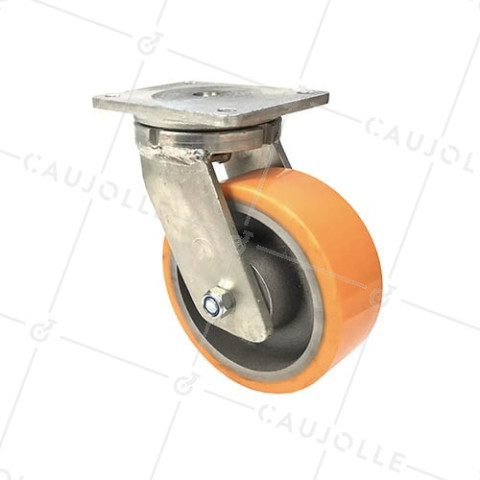

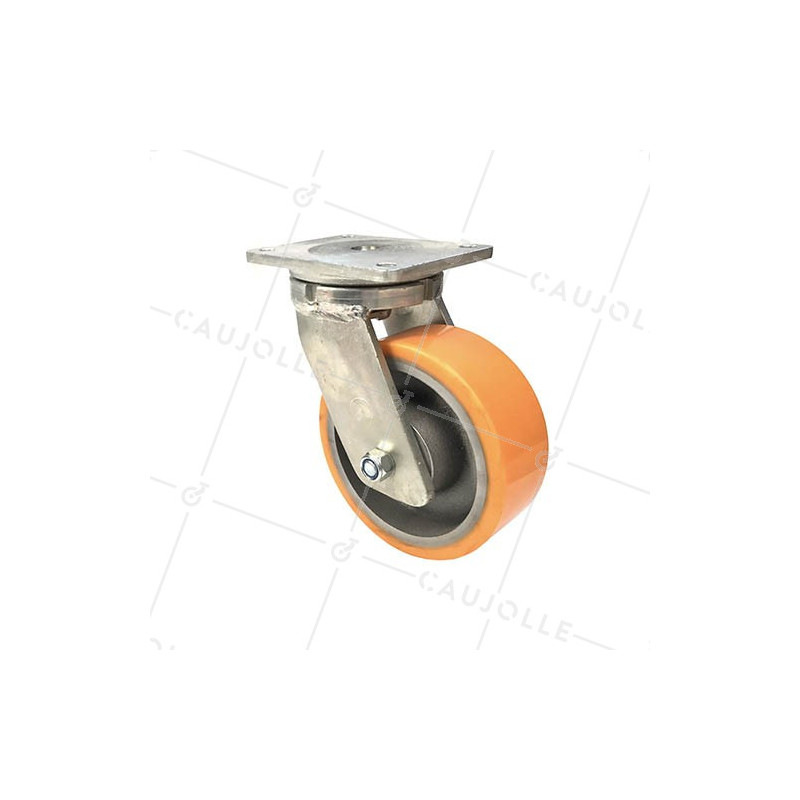

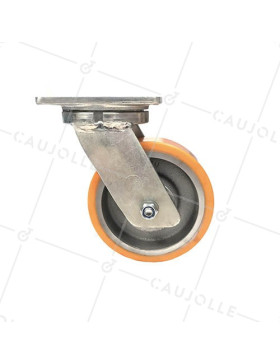

This pivoting caster, diameter 200 mm, is made up of a mechanically welded mounting, a plate 15 mm thick, a cast iron rim fitted with a polyurethane tyre.

This pivoting wheel can support a load weight of up to 1400 kg per unit.

Perfect for transporting marble slabs for cutting or under circular scaffolding.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 200

  • Load capacity in kilograms 1400

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 264

  • Specificities Non-staining

  • Dimension plate in mm 175x140

  • Distance between axes in mm 140x105

  • Diameter of fixation in mm M14

  • Wheel width in mm 72

  • Offset in mm 67

  • Dimensions in mm 167

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 10.000 Kg
