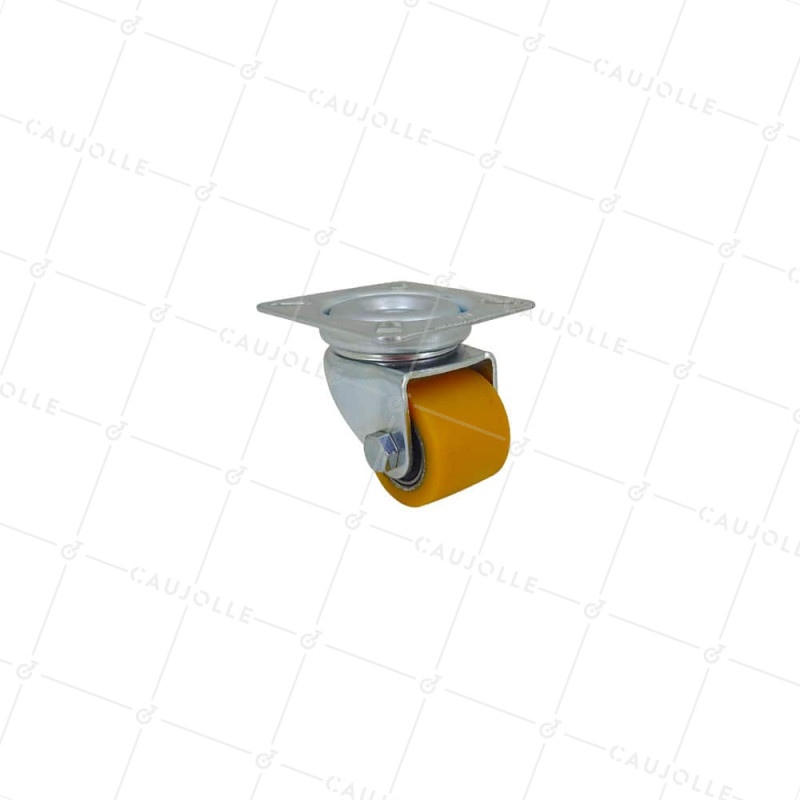

Castor MINI EXTRA-LOW HEAVY LOAD DIAMETER 35 MM HEIGHT 53 MM LOAD 100 KG - EXTRA SURB 35 P

REF: 99274

Castor of 35 mm diameter, swiveling at plate.

Its very low height relative to its allowable load makes it a very special product that is highly appreciated by industrialists. A bearing ball bearing 608RS is present on each side of the wheel.

The ideal use is under a workstation with frequent movements on smooth floors that should not be stained or damaged.

The oblong hole of 6x13 mm allows for a variable center distance of fixation between 40x40 and 47x47mm, which is very practical in some cases.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 35

  • Load capacity in kilograms 100

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 53

  • Specificities Heavy load

  • Dimension plate in mm 60x60

  • Distance between axes in mm 45/40x45/40

  • Diameter of fixation in mm M6

  • Wheel width in mm 27

  • Uses Castor industrial

  • Width of the bearing band in mm 27

  • Offset in mm 15

  • Dimensions in mm 65

  • Shore hardness 92 Sh A

  • Maximum speed in km/h 1

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 0.216 Kg
