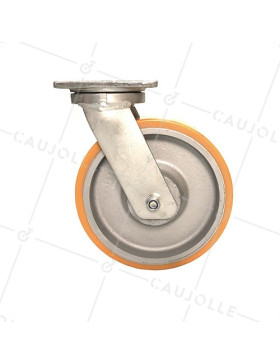

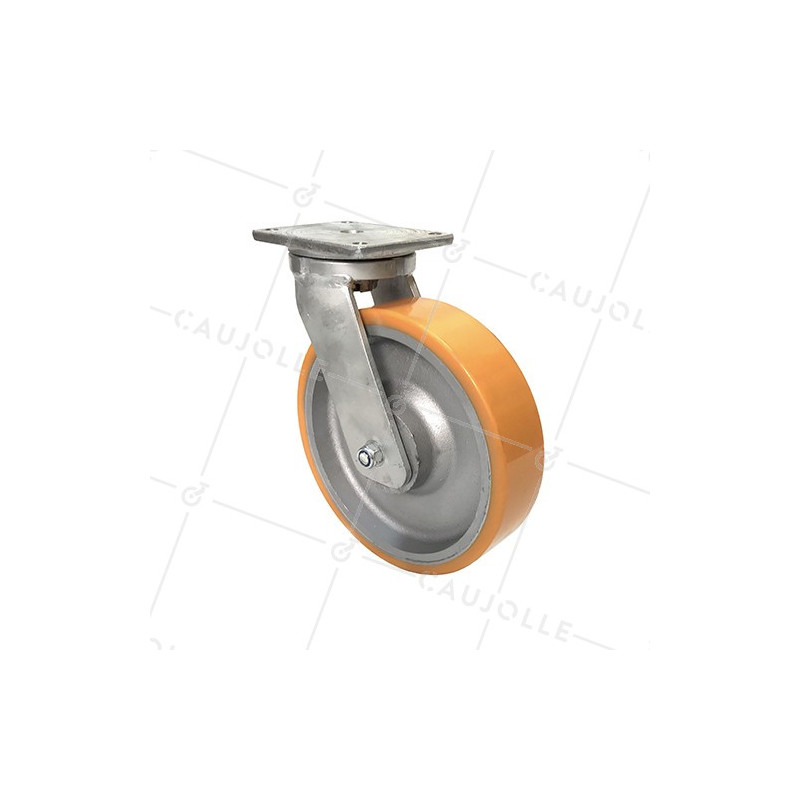

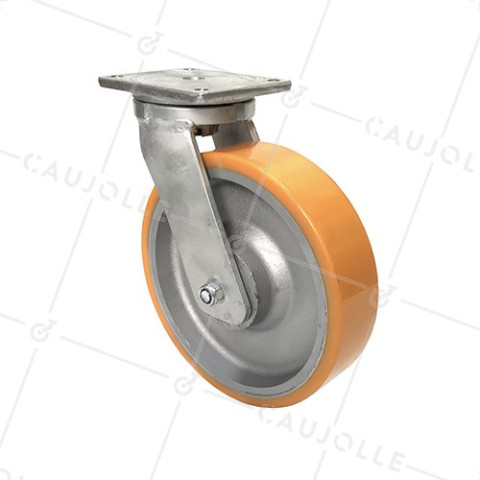

CAST IRON AND POLYURETHANE SWIVEL CASTOR DIAMETER 300 MM MAX LOAD 2000 KG - STEC300PIV

REF: 26170

This swivel castor is composed of a very thick and particularly solid mechanically welded steel mounting and wheel with polyurethane tread and cast iron rim. The 300 mm diameter wheel is fitted with a ball-bearing bore.

Very strong and robust, this castor would be perfect for moving any heavy load. Designed for professional use, it can be used to equip scaffolding andwine vats, amongst other uses.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 300

  • Load capacity in kilograms 2000

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 365

  • Specificities Non-staining

  • Dimension plate in mm 175x140

  • Distance between axes in mm 140x105

  • Diameter of fixation in mm M14

  • Wheel width in mm 74

  • Offset in mm 82

  • Dimensions in mm 232

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 22.350 Kg
