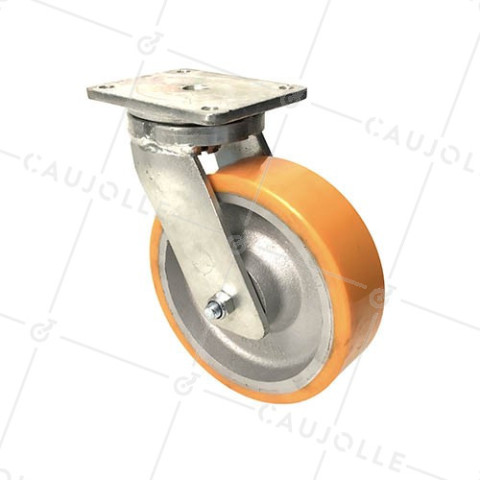

CAST IRON POLYURETHANE SWIVEL CASTOR 250 MM DIAMETER 1800 MAX LOAD - STEC 250PIV • Caujolle

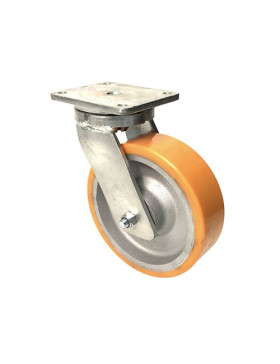

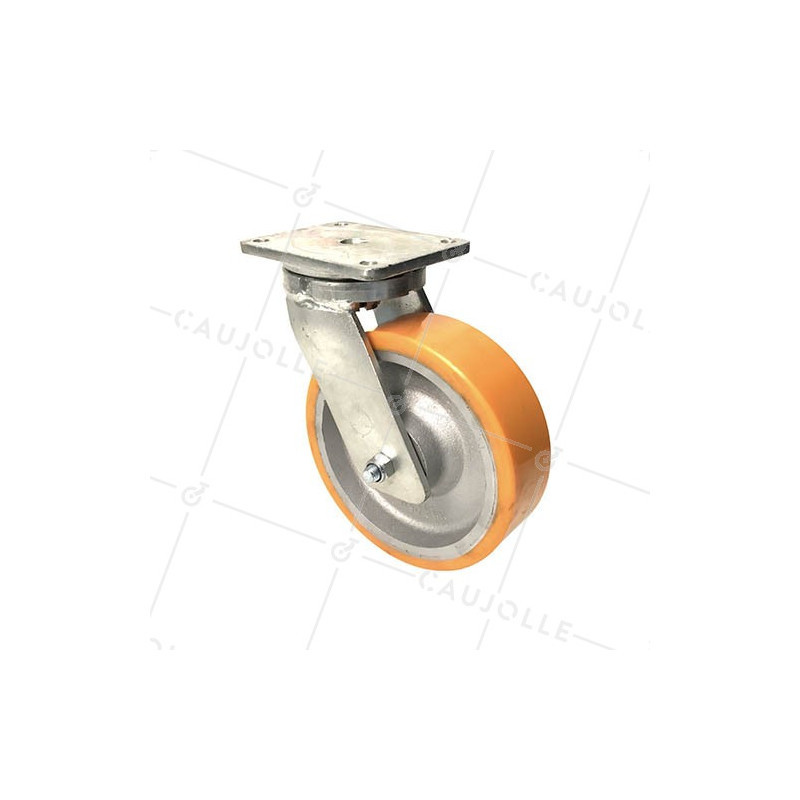

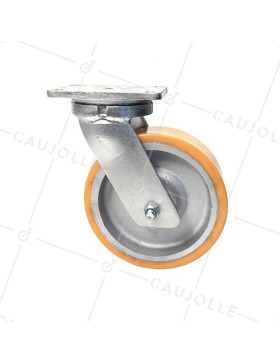

  • CAST IRON POLYURETHANE SWIVEL CASTER LOAD 1800 KG DIAMETER 250 MM - STEC 250PIV
  • CAST IRON POLYURETHANE SWIVEL CASTER LOAD 1800 KG DIAMETER 250 MM - STEC 250PIV
  • CAST IRON POLYURETHANE SWIVEL CASTER LOAD 1800 KG DIAMETER 250 MM - STEC 250PIV
How to choose your roulette?

CAST IRON POLYURETHANE SWIVEL CASTOR 250 MM DIAMETER 1800 MAX LOAD - STEC 250PIV

REF: 26160

Caster for moving extreme loads of over 1800 kg per unit ie 5400 kg over 4 wheels (the 4th is not counted).

The body of the wheel is in cast iron and the tyre in polyurethane for moving very heavy loads over smooth surfaces.

This model is particularly tough and will stand up to robust use in most environments. These wheels include a greaser to improve length of swivel over the long term. The thickness of the steel is 15 mm, the perfect dimension for such heavy loads.

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 250

  • Load capacity in kilograms 1800

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 314

  • Specificities Non-staining

  • Dimension plate in mm 175x140

  • Distance between axes in mm 140x105

  • Diameter of fixation in mm M14

  • Wheel width in mm 74

  • Offset in mm 85

  • Dimensions in mm 210

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 17.650 Kg
