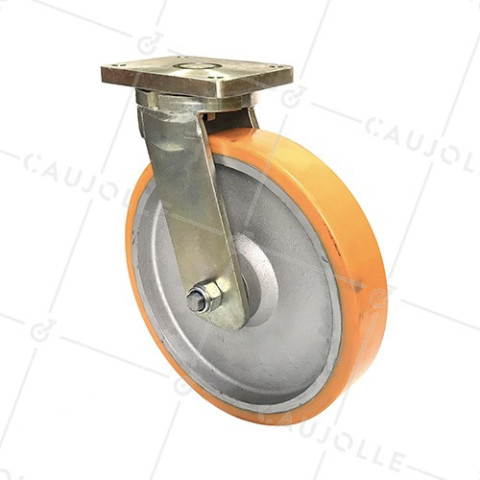

INDUSTRIAL SWIVEL CASTOR IN CAST IRON AND POLYURETHANE DIAMETER 400 MM MAX LOAD 2500 KG - STEC400PIV

REF: 26180

If you have extremely heavy loads to move this is the perfect product! With this castor everything is definitely XXL!

Each castor is capable of bearing over 2.5 tonnes making a total maximum load of 7.5 tonnes for 4 castors. It should always be remembered that the overall max weight is only calculated on 3 supports.

The body of the wheel is in cast iron with a tough polyurethane coating on the tread. The mounting is in very thick steel. The overall height is 475 mm. The advantage of polyurethane is that it never loses its shape even when carrying heavy loads in a static position.



Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 400

  • Load capacity in kilograms 2500

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 475

  • Specificities Non-staining

  • Dimension plate in mm 200x160

  • Distance between axes in mm 160x120

  • Diameter of fixation in mm M18

  • Wheel width in mm 75

  • Offset in mm 100

  • Dimensions in mm 114

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -20/+80

  • Weight 37.400 Kg
